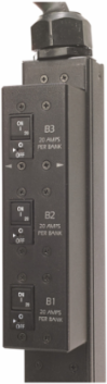

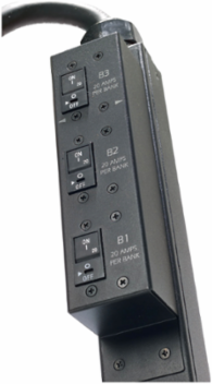

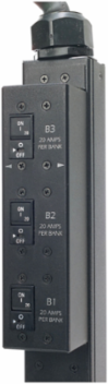

APC AP7998B Rack PDU Switched 12.5KW 208V, 21 C13 & 3 C19, 10 ft Cord, 0U Height
- MPN: AP7998B
- UPC: 731304331667
- PPN: APC-AP7998B
CAD
$3388.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a switched rack PDU with a maximum current capacity of 35A and an input voltage of 208V. It includes 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets. The PDU has a ZeroU form factor and a cord length of 10 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed, ensuring high safety and performance standards.
Features
- Status available to customers both in the data center and remotely
- Enables a quick recovery from overload events.
- Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
- It can handle a maximum power capacity of 12.5kW, suitable for demanding applications
- It includes 21 IEC C13 outlets and 3 IEC C19 outlets, offering extensive connectivity
- The ZeroU mounting design helps save rack space and improves cable management
- Allows for remote monitoring and control, enhancing power management capabilities
Documentation & Downloads
Specifications
Additional
| Voltage | 208 V 3 phase |
|---|---|
| Load Capacity | 12500 VA |
| Input Frequency | 50/60 Hz |
| Height | 70.00 in (177.8 cm) |
| Depth | 3.50 in (8.9 cm) |
| Cord Length | 10 ft (3.05 m) |
| Mounting Mode | Rack-mounted |
| RoHS | Compliant with Exemptions |
| Mercury Free | Yes |
| Country of Origin | India |
| Power Capacity | 12.5 kW |
|---|---|
| Max Line Current | 35 A |
| Size | 0 U Rack Height |
| Width | 2.20 in (5.6 cm) |
| Weight | 21.32 lb (9.67 kg) |
| Mounting Location | Side, vertical |
| Approvals | cUL Listed, CSA, Industry Canada, UL Listed |
| Lead Free | Yes |
| REACH Free of Substances of Very High Concern above threshold | Yes |
