APC APDU9965 Rack PDU, 9000 Switched, 0U, 8.6kW, 208V, 21 C13/C15 & 3 C19/C21 Sockets

MPN: APDU9965
UPC: 731304356325
PPN: APC-APDU9965

$3522.39

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 208V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via a NEMA L21-30P input connection. The PDU has a ZeroU form factor and a cord length of 6 feet (1.8 meters). It supports remote monitoring and user-defined alarms, with outlet-level on or off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.

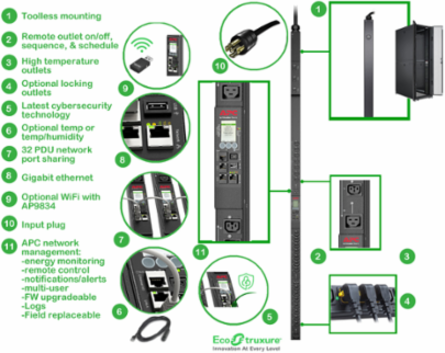

Features

It can handle a maximum power capacity of 8.6kW, suitable for high-power applications

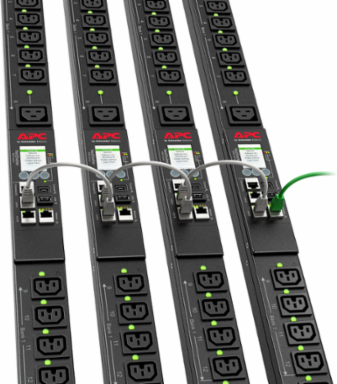

It includes 21 IEC C13 and C15 outlets and 3 IEC C19 and C21 outlets, offering extensive connectivity

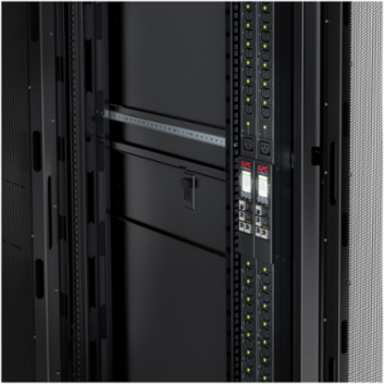

The ZeroU mounting design helps save rack space and improves cable management

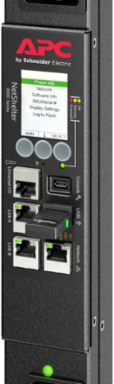

Allows for remote monitoring and control, enhancing power management capabilities

Documentation & Downloads

Specifications

Additional

Input Voltage	208 V 3 phase
Power Capacity	8.6 kW
Line Current Limit	30 A
Number of Outlets	21 C13/C15, 3 C19/C21
Height	72.01 in (182.9 cm)
Depth	2.01 in (5.1 cm)
Rack Units	0U
Mounting Position	side, vertical
RoHS	Compliant with Exemptions
WEEE	EU Waste Compliant

Output Voltage	208 V
Input Frequency	50/60 Hz
Line Rated Current	24 A
Cord Length	6 ft (1.83 m)
Width	2.20 in (5.6 cm)
Weight	18.03 lb (8.18 kg)

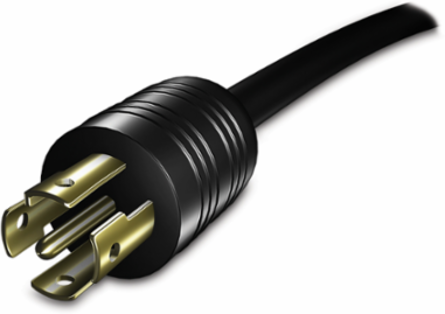

Input Plug Type	NEMA L21-30P
Compliance	cULus, FCC part 15 class A
Mercury Free	Yes
Reach	SVHC Above Threshold
