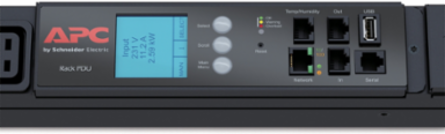

APC AP8887 Rack PDU 2G Metered ZeroU 17.3kW 240V (30) C13 & (12) C19 72.01 Inch Height
- MPN: AP8887
- UPC: 731304292432
- PPN: APC-AP8887
CAD
$3500.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
Features
- Ideal for colocation, large or remote data center operators
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Stay on top of potential circuit overloads with user-defined alarms
- Real-time remote monitoring and management through EcoStruxure IT & Secure NMC3
- Zero U toolless installation
Documentation & Downloads
Specifications
Additional
| Voltage | 400 V 3 phase input, 240 V output |
|---|---|
| Power Capacity | 17.3 kW |
| Height | 72.01 in (182.9 cm) |
| Depth | 2.01 in (5.1 cm) |
| Cord Length | 6 ft (1.83 m) |

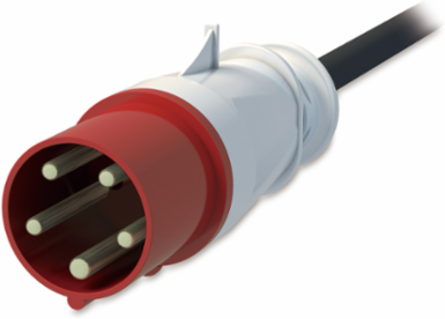

| Input Connection Type | IEC 60309 30A 3P+N+E |
| Material & Compliance | cUL Listed, UL Listed, VCCI Class A, RoHS Compliant with Exemptions, Lead Free, Mercury Free, REACH SVHC Free |
| Storage Temperature Range | -13 to 149 F (-25 to 65 C) |
| Storage Humidity Range | 5 to 95 % |
| Storage Altitude | 0 to 50000 ft (0 to 15240 m) |
| Current | 24 A line rated, max 30 A input |
|---|---|
| Frequency | 50/60 Hz |
| Width | 2.20 in (5.6 cm) |
| Weight | 21.16 lb (9.6 kg) |
| Mounting Type | Rack-mounted, side, vertical |
| Rack Units | 0U |
| Operating Temperature Range | 23 to 140 F (-5 to 60 C) |
| Operating Humidity Range | 5 to 95 % |
| Operating Altitude | 0 to 10000 ft |
| Country of Origin | India |
