APC AP8681 Rack PDU 2G, Metered Outlet Switch, ZeroU, 11kW, 230V, (21) C13 & (3) C19
- MPN: AP8681
- UPC: 731304299530
- PPN: APC-AP8681
CAD
$4552.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Features
- Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
- Ideal for Colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Zero U toolless installation
- Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles
- User-defined alarms warn of potential circuit overloads before critical IT failures occur
Documentation & Downloads
Specifications
Additional
| Voltage | 230 V |
|---|---|
| Power Capacity | 11 kW |
| Load Capacity | 11000 VA |
| Dimensions (H x W x D) | 72.01 in x 2.20 in x 2.01 in (182.9 cm x 5.6 cm x 5.1 cm) |
| Rack Units | 0U |

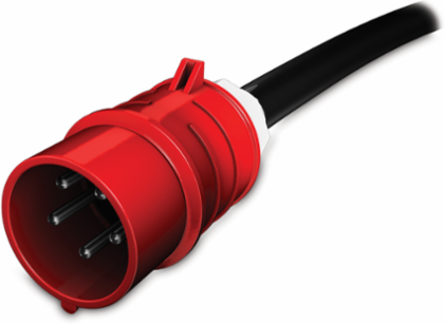

| Input Connection Type | IEC 60309 16A 3P+N+PE, IEC 60309 20A 3P+N+PE |
| Product Certifications | cUL Listed, UL Listed, VDE |
| Mercury Free | Yes |
| Reach Free Of SVHC | Yes |
| Country of Origin | India |
| Input Voltage | 400 V 3 phase |
|---|---|
| Line Rated Current | 16 A |
| Input Frequency | 50/60 Hz |
| Weight | 18.14 lb (8.23 kg) |
| Cord Length | 6 ft (1.83 m) |
| Mounting Mode | Rack-mounted, side, vertical |
| RoHS | Compliant with Exemptions |
| Lead Free | Yes |
| Standards | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003 |
