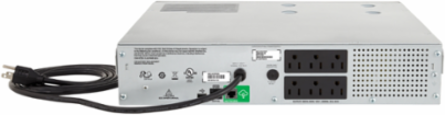

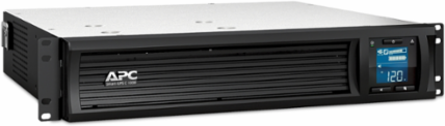

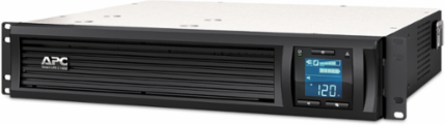

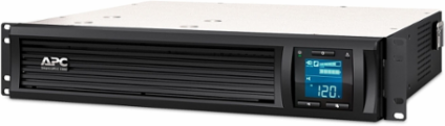

APC SMC1000-2UC Smart-UPS C 1000VA Rackmount 2U with 6x NEMA 5-15R Outlets, AVR, 120V
- MPN: SMC1000-2UC
- UPC: 731304322733
- PPN: APC-SMC1000-2UC
CAD
$1216.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS C 1000VA Rackmount 2U with 6x NEMA 5-15R Outlets, AVR, 120V
Features
- Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. — Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- LCD Status Display — Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 1000 VA |
|---|---|
| Input Voltage | 120 V |
| Output Connections | 6 NEMA 5-15R |
| Cord Length | 8 ft (2.44 m) |
| Weight | 45.24 lb (20.52 kg) |
| Typical Recharge Time | 3 h |
| Waveform Type | Sine wave |
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Operating Altitude | 0 to 10,000 ft |
| Relative Humidity | 0-95% |
| Mercury Free | Yes |
| Approvals | cULus, ENERGY STAR V2.0 (USA) |
| Mount Position | front |
| Color | Black |
| Power Output | 600 W |
|---|---|
| Nominal Output Voltage | 120 V |
| Rack Height | 2U |
| Dimensions (HxWxD) | 3.39 in x 17.01 in x 15.98 in (86 mm x 432 mm x 406 mm) |
| Battery Type | Lead-Acid battery |
| Topology | Line Interactive |
| Surge Energy Rating | 680 J |
| Storage Temperature Range | 5 to 113 F (-15 to 45 C) |
| Storage Altitude | 0 to 50,000 ft (0 to 15,240 m) |
| RoHS | Compliant with Exemptions |
| California Proposition 65 | Prop 65 Compliant (contains lead) |
| Replacement Battery | APCRBC124 |
| Input Connection Type | NEMA 5-15P |
| Country of Origin | Philippines |
