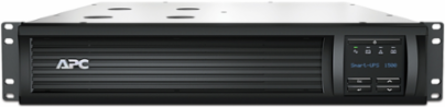

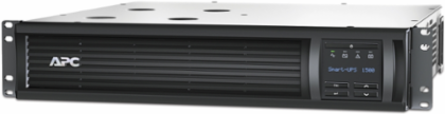

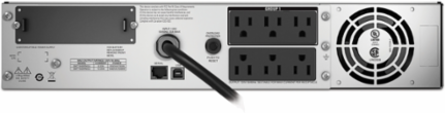

APC SMT1500R2X122 Smart-UPS 1500VA Rackmount 2U 120V Pure Sine Wave 6 NEMA 5-15R Outlets
- MPN: SMT1500R2X122
- UPC: 731304294061
- PPN: APC-SMT1500R2X122
CAD
$1723.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 1500VA Rackmount 2U 120V Pure Sine Wave 6 NEMA 5-15R Outlets
Features
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Capacity
- 1500 VA
- Output Power
- 1000 W
- Output Voltage
- 120 V
- Transfer Time
- 4 ms typical, 8 ms maximum
- Output Frequency
- 50/60 Hz ±3 Hz sync to mains
- Battery Life
- 4-6 years
- Battery Charge Power
- 144 W
- Waveform Type
- Sine wave
- Height
- 3.50 in (89 mm)
- Depth
- 17.99 in (457 mm)
- Input Connection Type
- NEMA L5-15P
- Cord Length
- 8 ft (2.44 m)
- Heat Dissipation
- 90 Btu/h
- Storage Altitude
- 0-50000 ft
- Ambient Storage Temperature
- 5-113 °F (-15-45 °C)
- Product Certifications
- CSA
- Mercury Free
- Yes
- WEEE
- EU compliant disposal
- Color
- Black
- Product Orientation
- lower
- USB Compatible
- Yes
Rated Power1440 VA
Input Voltage120 V
Surge Energy Rating459 J
Input Frequency50/60 Hz ±3 Hz auto-sensing
Battery TypeLead-Acid battery
Typical Recharge Time3 h
TopologyLine Interactive
Rack Units2U
Width17.01 in (432 mm)
Net Weight63.14 lb (28.64 kg)
Output Connection Type6 NEMA 5-15R
Acoustic Level46 dBA
Operating Altitude0-10000 ft
Ambient Operating Temperature32-104 °F (0-40 °C)
Relative Humidity0-95 %
RoHSCompliant with Exemptions
California Proposition 65Prop 65 Compliant
Replacement BatteryAPCRBC133
Warranty3 years repair or replace, 2 years battery
Mount Positionfront
Equipment Protection PolicyLifetime: $150000
