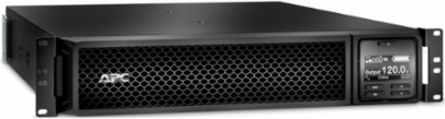

APC SRT1500RMXLA Smart-UPS On-Line 1500VA Rackmount 2U 120V 6x NEMA 5-15R Outlets
- MPN: SRT1500RMXLA
- UPC: 731304330073
- PPN: APC-SRT1500RMXLA
CAD
$3320.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS On-Line 1500VA Rackmount 2U 120V 6x NEMA 5-15R Outlets
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1500 VA, 1350 W
- Output Voltage
- 120 V
- Output Connections
- 6 NEMA 5-15R
- Surge Energy Rating
- 480 J
- Rack Height
- 2U
- Width
- 17.01 in (432 mm)
- Weight
- 48.5 lb (22 kg)
- Cord Length
- 6 ft (1.83 m)
- Battery Voltage
- 48 V
- Battery Life
- 3 to 5 years
- RoHS
- Compliant with Exemptions
- Operating Temperature Range
- 32 to 104 °F (0 to 40 °C)
- Operating Altitude
- 0 to 10,000 ft
- Relative Humidity
- 0 to 95% non-condensing
- Heat Dissipation
- 463 Btu/h
- Crest Factor
- 3:1
- Output Frequency
- 50/60 Hz ±3 Hz sync to mains
- Energy Efficiency Certification
- ENERGY STAR V2.0 (USA)
- Warranty
- 3 years repair or replace (excluding battery), 2 years for battery
- Replacement Battery
- APCRBC155
- California Proposition 65
- Prop 65 Compliant
- WEEE
- Must be disposed per EU waste collection rules
Input Voltage120 V
Input Connection TypeNEMA 5-15P
Waveform TypeSine wave
TopologyDouble Conversion Online
Height3.35 in (85 mm)
Depth20.00 in (508 mm)
Mount Positionfront, horizontal
Battery TypeLead-Acid battery
Typical Recharge Time3 h
Mercury FreeYes
IP RatingIP20
Storage Temperature Range-4 to 122 °F (-20 to 50 °C)
Storage Altitude0 to 50,000 ft
Acoustic Level50 dBA
Bypass TypeBuilt-in Bypass
Harmonic Distortion< 2%
Emergency Power Off (EPO)Yes
Optimized Energy EfficiencyEnergy efficient product
ColorBlack
Product Orientationno preference
ReachContains Substances of Very High Concern above threshold
