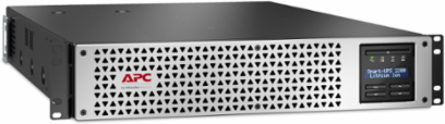

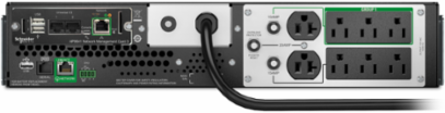

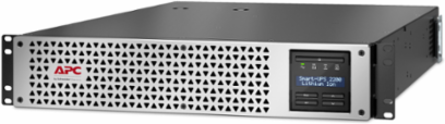

APC SMTL2200RM2UCNC Smart-UPS 2200VA Line Interactive Lithium-Ion Rackmount 2U 120V with 8ft Cord
- MPN: SMTL2200RM2UCNC
- UPC: 731304429111
- PPN: APC-SMTL2200RM2UCNC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS 2200VA Line Interactive Lithium-Ion Rackmount 2U 120V with 8ft Cord
Documentation & Downloads
Specifications
Additional
- Capacity
- 1920 VA
- Input Voltage
- 120 V
- Input Frequency
- 50/60 Hz +/- 3 Hz
- Surge Energy Rating
- 530 J
- Waveform Type
- Sine wave
- Height
- 3.39 in (86 mm)
- Depth
- 26.89 in (683 mm)
- Rack Height
- 2U
- Input Connection Type
- NEMA 5-20P
- Battery Type
- Li-Ion (Lithium Ion)
- Interface Port
- SmartConnect Ethernet port for cloud monitoring
- Ambient Operation Temperature
- 32-104 F
- IP Degree of Protection
- IP20
- Acoustic Level
- 55 dB
- Color
- Black with silver front bezel
- RoHS
- Compliant with Exemptions
- Mercury Free
- Yes
- Product Orientation
- Lower
Output Power1920 W
Output Voltage120 V
Output Frequency50/60 Hz +/- 3 Hz
Transfer Time6 ms typical, 10 ms maximum
TopologyLine Interactive
Width17.01 in (432 mm)
Weight70.33 lb (31.9 kg)
Cord Length8 ft (2.44 m)
Output Connections2 NEMA 5-20R, 6 NEMA 5-15R
Replacement BatteryAPCRBC174-LI
Operating Altitude0-10000 ft
Storage Temperature5-113 F
Relative Humidity0-95% non-condensing
Heat Dissipation215 Btu/h
Country of OriginPhilippines
ApprovalscULus, ENERGY STAR V2.0 (USA)
REACH SVHC FreeYes
Warranty5 year repair or replace
