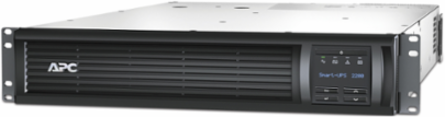

APC SMT2200RMUS Smart-UPS Line Interactive 2200VA 2U Rackmount 120V 8 Outlets Sine Wave Output
- MPN: SMT2200RMUS
- UPC: 731304305613
- PPN: APC-SMT2200RMUS
CAD
$3462.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS Line Interactive 2200VA 2U Rackmount 120V 8 Outlets Sine Wave Output
Features
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1920 VA
- Input Voltage
- 120 V
- Topology
- Line Interactive
- Input Connection Type
- NEMA 5-20P
- Rack Height
- 2U
- Weight
- 93.28 lb (42.31 kg)
- Typical Recharge Time
- 3 h
- Color
- Black
- Mercury Free
- Yes
Output Power1920 W
Nominal Output Voltage120 V
Surge Energy Rating530 J

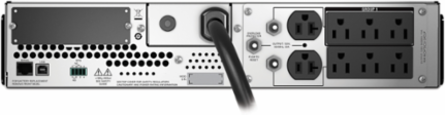

Output Connections6 NEMA 5-15R, 2 NEMA 5-20R
Dimensions (WxDxH)18.90 in (480 mm) x 26.89 in (683 mm) x 3.39 in (86 mm)
Battery TypeLead-Acid battery
Waveform TypeSine wave
ComplianceCSA, TAA, RoHS Compliant with Exemptions
Country of OriginIndia
