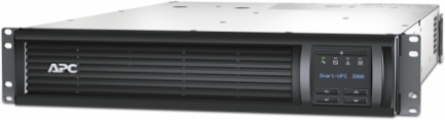

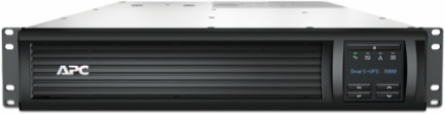

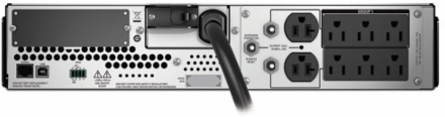

APC SMT3000RM2U Smart-UPS 3kVA Rackmount 2U 120V Line Interactive, 8 Outlets, Sine Wave Output
- MPN: SMT3000RM2U
- UPC: 731304279549
- PPN: APC-SMT3000RM2U
CAD
$3694.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 3kVA Rackmount 2U 120V Line Interactive, 8 Outlets, Sine Wave Output
Features
- Adjustable voltage sensitivity — Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points — Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms — Provides notification of changing utility power and UPS power conditions
- Automatic restart of loads after UPS shutdown — Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test — Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Boost and Trim Automatic Voltage Regulation (AVR) — Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Disconnected battery notification — Warns when a battery is not available to provide backup power.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- LED Indicators — Provide easy-to-read status of the unit and utility power conditions.
- Network manageable — Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
- Outlet group control — Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
- Predictive failure notification. — Provides early-warning fault analysis ensuring proactive component replacement.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Safety-agency approved — The UPS is UL1778 Listed
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Serial connectivity — Provides management of the UPS via a serial port.
- Sine wave output — Eliminates humming and heat generated when powering tube lights and fans
- Single switched outlet group — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
- USB connectivity — Provides management of the UPS via a USB port (not available on all models).
- User-replaceable batteries — Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 2880 VA (2.88 kVA)
- Output Waveform
- Sine wave
- Outlets
- 8
- Input Connection Type
- NEMA L5-30P
- Battery Type
- Lead-acid battery
- Form Factor
- 2U Rackmount
- Product Orientation
- Rack
- Dimensions (W x H x D)
- 18.9 in x 3.39 in x 26.89 in (48.0 cm x 8.6 cm x 68.3 cm)
- Approvals
- CSA, UL Listed
- Color
- Black
Voltage120V
TopologyLine interactive
Interface PortsRJ-45 Serial, Smart-Slot, USB
Surge Energy Rating459
Typical Recharge Time3 hours
Rack Height2U
Mount PositionFront
Cord Length8.01 ft (2.4 m)
RoHSCompliant
Warranty3 years repair/replace excluding battery; 2 years battery
