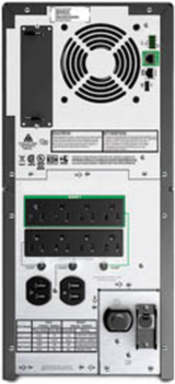

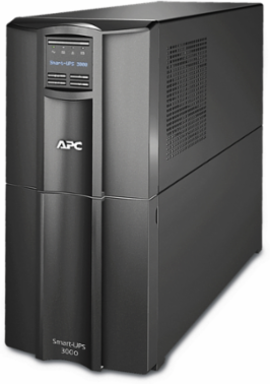

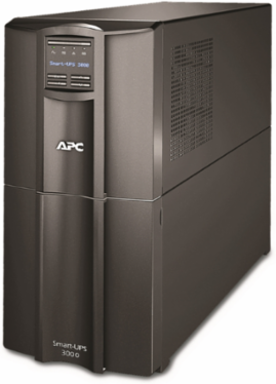

APC SMT3000C Smart-UPS 3kVA Line Interactive UPS, 120V, 8 NEMA 5-15R+2 NEMA 5-20R, Sine Wave Output
- MPN: SMT3000C
- UPC: 731304331063
- PPN: APC-SMT3000C
CAD
$3447.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 3kVA Line Interactive UPS, 120V, 8 NEMA 5-15R+2 NEMA 5-20R, Sine Wave Output
Features
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- Predictive failure notification. — Provides early-warning fault analysis ensuring proactive component replacement.
- Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. — Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Resettable circuit breakers — Enables a quick recovery from overload events.
- Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions. — Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
- Boost and Trim Automatic Voltage Regulation (AVR) — Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Serial connectivity — Provides management of the UPS via a serial port.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Disconnected battery notification — Warns when a battery is not available to provide backup power.
- Adjustable voltage sensitivity — Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points — Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms — Provides notification of changing utility power and UPS power conditions
- Automatic restart of loads after UPS shutdown — Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test — Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Network manageable — Provides remote power management of the UPS over the network.
- Power conditioning — Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Safety-agency approved — Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
- USB connectivity — Provides management of the UPS via a USB port (not available on all models).
- User-replaceable batteries — Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 2880 VA
- Input Voltage
- 120 V
- Topology
- Line Interactive
- Waveform Type
- Sine wave
- Surge Energy Rating
- 530 J
- Typical Recharge Time
- 3 h
- Battery Replaceability
- User replaceable
- Battery Charge Power
- 271 W rated
- Input Connection Type
- NEMA L5-30P
- Height
- 17.13 in (435 mm)
- Depth
- 21.42 in (544 mm)
- Mounting Location
- Front
- Acoustic Level
- 45 dBA
- Operating Altitude
- 0-10000 ft
- Storage Temperature
- 5-113 °F (-15-45 °C)
- Relative Humidity
- 0-95 %
- Color
- Black
- California Proposition 65
- Prop 65 Compliant (contains lead)
Output Power2700 W
Output Voltage120 V
Transfer Time6 ms typical, 10 ms maximum
Input Frequency50/60 Hz ± 3 Hz auto-sensing
Battery TypeLead-Acid battery
Battery Life3-5 years
Replacement BatteryRBC55
Output Connection Type8 NEMA 5-15R, 2 NEMA 5-20R
Cable Length6 ft (1.83 m)
Width7.76 in (197 mm)
Net Weight116.25 lb (52.73 kg)
Mounting ModeNot rack-mountable
Heat Dissipation275 Btu/h
Operating Temperature32-104 °F (0-40 °C)
Storage Altitude0-50000 ft (0-15240 m)
Storage Relative Humidity0-95 %
Product CertificationscULus, ENERGY STAR V2.0 (USA), RoHS Compliant with Exemptions
Country of OriginPhilippines
