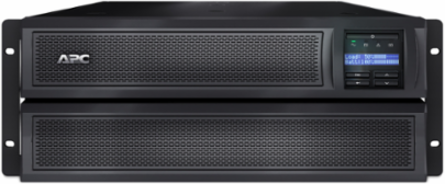

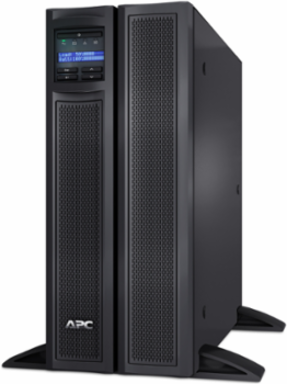

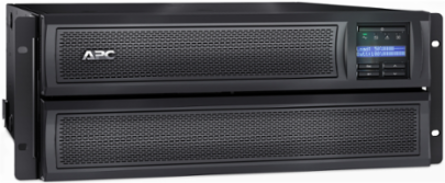

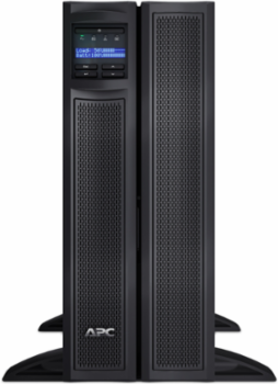

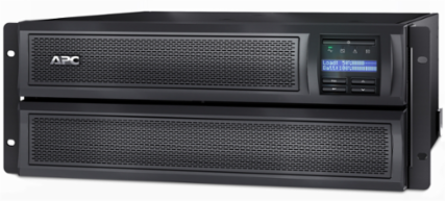

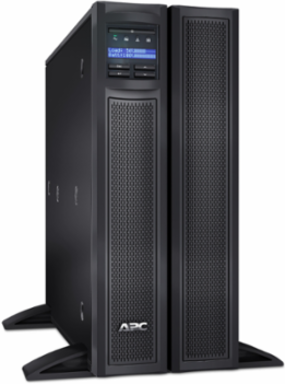

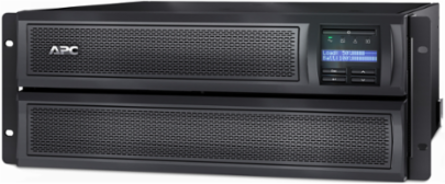

APC SMX2000LV Smart-UPS X 2000VA Line Interactive UPS, 4U Rack/Tower, 120V, 6x 5-15R, Extended Runtime
- MPN: SMX2000LV
- UPC: 731304292586
- PPN: APC-SMX2000LV
CAD
$3276.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

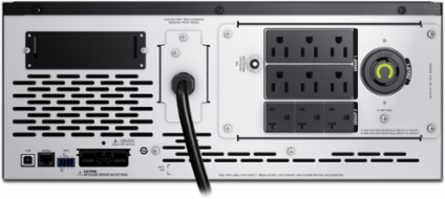

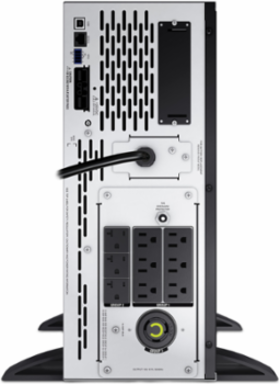

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Features
- Reduces utility costs, generates less heat.
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime UPSs with switched outlet groups.
- Customize network shutdown and reboot sequence of connected servers and UPSs.
- Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations for UPSs with switched outlet groups.
- Allows additional run time to be quickly added as needed.
- Automatically starts up the connected equipment upon the return of utility power.
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Customize UPS capabilities with management cards.
- 1920VA/1800W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
- User-selectable low voltage setting of 100V-127V

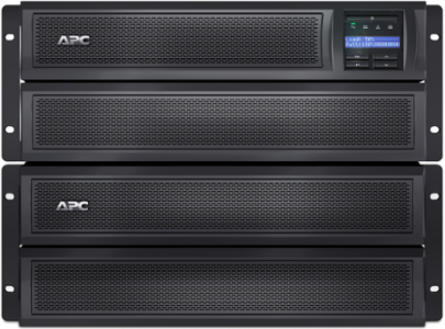

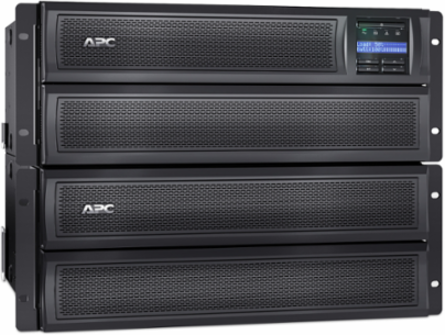

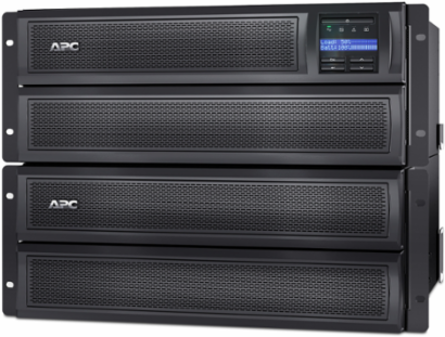

- Add up to 10 external battery packs (SMX120BP)
- Short depth UPS provides extra space for cable management
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Ideal for servers, storage, networking & commercial applications
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Philippines |
|---|
Conformance
| EquipmentProtectionPolicy | Lifetime : $150000 |
|---|---|
| Reach | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Date | 2025-07-18 |
| Rohs | Compliant By Exemption |
|---|---|
| OptimizedEnergyEfficiency | Energy efficient product |
| Removable Battery | User replaceable |
Battery
| ReplacementBattery | APCRBC143 |
|---|---|
| BatteryType | Lead-Acid battery |
| TypicalRechargeTime | 3 h |
|---|
Sustainability
| TakeBack | Yes |
|---|---|
| Recycled metal content in percentage | 0 % |
| Packaging without single use plastic | No |
| Carbon Footprint | 2891.7744805411 |
|---|---|
| Packaging with recycled cardboard | Yes |
| Product contributes saved avoided emissions | No |
Weight, Height, Width, Depth
| Height | 17.01 in (432 mm) |
|---|---|
| Depth | 19.02 in (483 mm) |
| Width | 7.01 in (178 mm) |
|---|---|
| Weight | 85.01 lb(US) (38.64 kg) |
Logistical informations
| Customs number | 8504407018 |
|---|
Physical
| ProductOrientation | lower |
|---|---|
| Color | Black |
| MountPosition | front |
| RackHeight | 4U |
|---|---|
| SurgeEnergyRating | 540 J |
Input
| CordLength | 8 ft (2.44 m) |
|---|---|
| InputVoltage | 120 V AC 1 phase |
| InputConnectionType | NEMA 5-20P |
|---|
Output
| OutputPowerCapacity | 1920 VA |
|---|---|
| NominalOutputVoltage | 120 V AC 1 phase |
| Waveformtype | Sine wave |
| OutputConnections | 3 NEMA5-20R, 1 NEMAL5-20R, 6 NEMA5-15R |
|---|---|
| Topology | Line Interactive |
Warranty
| Warranty | UPS: 36 month(s), Battery: 24 month(s) |
|---|
