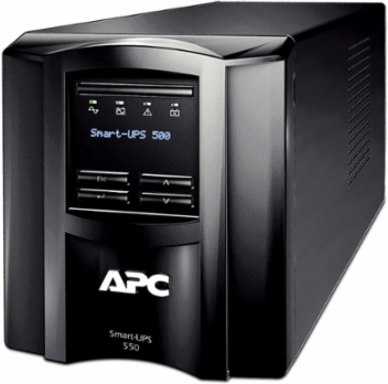

APC SMT500J Smart-UPS Tower 500VA 100V Line Interactive with 6x NEMA 5-15R Outlets
- MPN: SMT500J
- UPC: 731304290902
- PPN: APC-SMT500J
CAD
$1232.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 500VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 2-year warranty and comes with a built-in lead-acid battery. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Features
- Enables centralized management via StruxureWare Data Center Expert.
- Reduces utility costs, generates less heat.
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

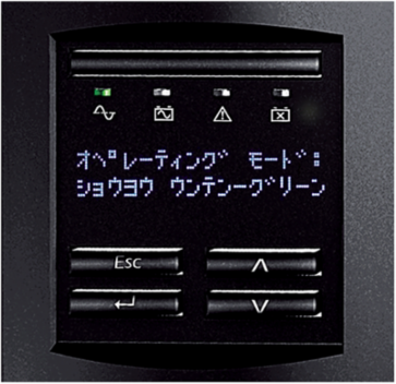

- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Simulates utility power to provide the highest degree of compatibility for active PFC power factor corrected servers and sensitive electronics.
- Customize UPS capabilities with management cards.
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- 500VA/360W line interactive pure sine wave tower UPS
- Ideal for servers, storage, network closets, business VoIP and desktops, retail POS
- Automatic Voltage Regulation helps correct utility voltage
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 500 VA |
|---|---|
| Topology | Line Interactive |
| Maximum Input Current | 5.0 A |

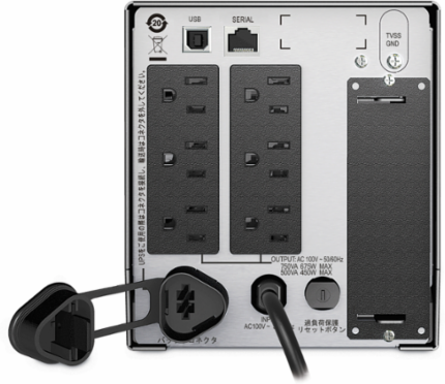

| Output Connections | 6 NEMA 5-15R |
| Input Connection Type | NEMA 5-15P |
| Width | 5.51 in (14.0 cm) |
| Product Orientation | Tower |
| Interface Ports | RJ-45 Serial, SmartSlot, USB |
| RoHS | Compliant |
| Warranty | 2 years (Japan only) |
| Input Voltage | 100 V |
|---|---|
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Battery Type | Lead-acid |
| Height | 6.57 in (16.7 cm) |
| Depth | 14.13 in (35.9 cm) |
| Mount Position | Front |
| Color | Black |
| Approvals | VCCI Class A |
