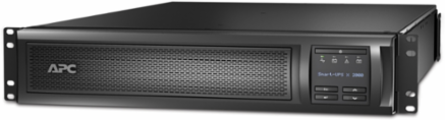

APC SMX2000RMLV2U Smart-UPS X 2000VA Line Interactive 2U Rack/Tower Convertible 120V
APC SMX2000RMLV2U Smart-UPS X 2000VA Line Interactive 2U Rack/Tower Convertible 120V
- MPN: SMX2000RMLV2U
- UPC: 731304268536
- PPN: APC-SMX2000RMLV2U
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3716.42/ EA
Features
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- Predictive failure notification. — Provides early-warning fault analysis ensuring proactive component replacement.
- Wide input voltage range — Designed for harsh electrical environments to save battery life.
- LED Indicators — Provide easy-to-read status of the unit and utility power conditions.
- Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload. — Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
- Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions. — Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
- Boost and Trim Automatic Voltage Regulation (AVR) — Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Serial connectivity — Provides management of the UPS via a serial port.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. — Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- UPS recognizes when external battery packs are attached and automatically adjusts runtime. — UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Disconnected battery notification — Warns when a battery is not available to provide backup power.
- Load shedding — Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Outlet group control — Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
- Scalable runtime — Allows additional run time to be quickly added as needed.
- Adjustable voltage sensitivity — Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points — Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms — Provides notification of changing utility power and UPS power conditions
- Automatic restart of loads after UPS shutdown — Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test — Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Network manageable — Provides remote power management of the UPS over the network.
- Power conditioning — Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Safety-agency approved — Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
- USB connectivity — Provides management of the UPS via a USB port (not available on all models).
- User-replaceable batteries — Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Frequency and voltage regulation — Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Specifications
Conformance
- Approvals
- BSMI, CSA, NOM, TÜV, VCCI Class A
EquipmentProtectionPolicyLifetime : $150000
Battery
- ReplacementBattery
- APCRBC117
- BatteryType
- Lead-Acid battery
TypicalRechargeTime3 h
Sustainability
- Rohs
- Compliant with Exemptions
- OptimizedEnergyEfficiency
- Energy efficient product
- MercuryFree
- Yes
- WEEE
- N/A
ReachReference contains Substances of Very High Concern above the threshold
TakeBackYes
CaliforniaProposition65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weight, Height, Width, Depth
- Weight
- 84.77 lb(US) (38.45 kg)
- Width
- 17.01 in (432 mm) in
Height3.35 in (85 mm) in
Depth26.26 in (667 mm) in
Logistical informations
- Country of origin
- PH
Customs number8504407018
Physical
- ProductOrientation
- lower
- Color
- Black
- MountPosition
- front
RackHeight2U
SurgeEnergyRating540 J
Input
- CordLength
- 8 ft (2.44 m)
- InputVoltage
- 120 V AC 1 phase
InputConnectionTypeNEMA 5-20P
Output
- OutputPowerCapacity
- 1920 VA
- NominalOutputVoltage
- 120 V AC 1 phase
- Waveformtype
- Sine wave
OutputConnections3 NEMA5-15R, 3 NEMA5-20R, 1 NEMAL5-20R
TopologyLine Interactive
Specifications
- Country of Origin
- Philippines
Warranty
- Warranty
- UPS: 36 month(s), Battery: 24 month(s)
