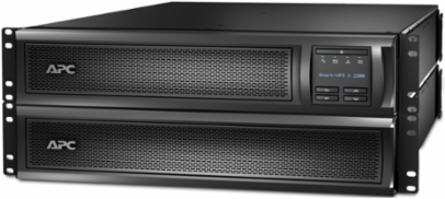

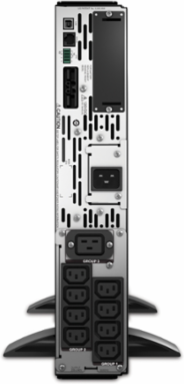

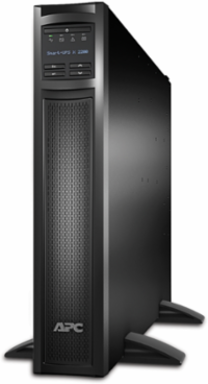

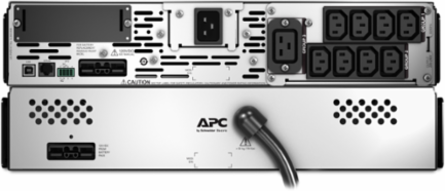

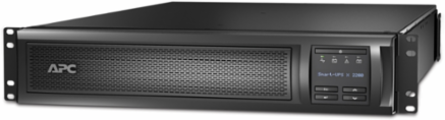

APC SMX2200RMHV2U Smart-UPS X Line Interactive 2200VA 2U Rack/Tower 208V-230V, 8x C13+1x C19 IEC

MPN: SMX2200RMHV2U
UPC: 731304272687
PPN: APC-SMX2200RMHV2U

$4164.18

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Features

Reduces utility costs, generates less heat.
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Provides actual kilowatt hours of usage for energy conscious users.
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Provides temporary battery power when the utility power is out.
Customize UPS capabilities with management cards.
Prolongs battery life by regulating the charge voltage according to battery temperature.
2200VA/1980W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
User-selectable high voltage setting of 200V-240V
Add up to 10 external battery packs (SMX120RMBP2U)
Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
Ideal for servers, storage, networking & commercial applications

Documentation & Downloads

Specifications

Additional

Output Power Capacity	2200 VA
Input Voltage	208 V, 230 V
Input Frequency	50/60 Hz 3 Hz auto-sensing
Transfer Time	2-4 ms (6 ms typical, 10 ms max)
Waveform Type	Sine wave
Typical Recharge Time	3 h
Surge Energy Rating	645 J
Heat Dissipation	150 Btu/h
Storage Temperature Range	5 113 F (-15 45 C)
Storage Altitude	0 50000 ft (0 15240 m)
Storage Relative Humidity	0 95%
Width	17.01 in (432 mm)
Weight	82.28 lb (37.32 kg)
Cable Length	6 ft (1.83 m)
Input Connection Type	IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British
Material Color	Black
Standards	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Country of Origin	Philippines

Rated Power	1980 W
Output Voltage	208 V, 230 V
Output Frequency	50/60 Hz 3 Hz synced to mains
Topology	Line Interactive
Battery Type	Lead-Acid battery
Battery Life	3-5 years
Acoustic Level	55 dBA
Operating Temperature Range	32 104 F (0 40 C)
Operating Altitude	0 10000 ft
Relative Humidity	0 95%
Height	3.35 in (85 mm)
Depth	26.26 in (667 mm)
Rack Height	2U
Output Connections	8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
Mount Position	front
Compliance	CE, EAC, IRAM, RCM, TISI, VDE, UK PSTI
RoHS Compliance	Compliant with Exemptions
