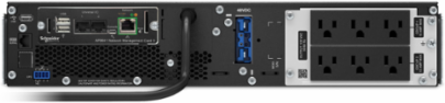

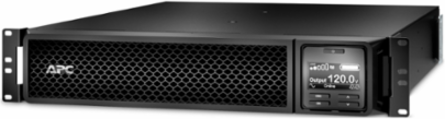

APC SRT1000RMXLA-NCUS Smart-UPS On-Line 1000VA Rackmount 2U 120V 6x NEMA 5-15R Outlets, Black
- MPN: SRT1000RMXLA-NCUS
- UPC: 731304740568
- PPN: APC-SRT1000RMXLA-NCUS
CAD
$3014.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS On-Line 1000VA Rackmount 2U 120V 6x NEMA 5-15R Outlets, Black
Documentation & Downloads
Specifications
Additional
- Power Rating
- 1000 VA, 900 W
- Output Voltage
- 120 V
- Output Connection Type
- 6 NEMA 5-15R
- Battery Voltage
- 48V
- Battery Life
- 3 to 5 years
- Topology
- Double Conversion Online
- Output Frequency
- 50/60 Hz ±3 Hz
- Bypass Type
- Built-in Static Bypass
- Acoustic Level
- 50 dBA
- Operating Altitude
- 0 to 10,000 ft
- Storage Temperature
- -4 to 122 °F
- Relative Humidity
- 0 to 95% non-condensing
- Emergency Power Off (EPO)
- Yes
- Cable Length
- 6 ft (1.83 m)
- Width
- 17.01 in (432 mm)
- Net Weight
- 48.50 lb (22 kg)
- Pre-Installed SmartSlot™ Cards
- Network management card 3 with environmental monitoring
- Compliance
- TAA, ENERGY STAR V2.0 (USA), RoHS Compliant with Exemptions
- Country of Origin
- Mexico
Input Voltage120 V
Input Connection TypeNEMA 5-15P
Battery TypeLead-Acid battery
Typical Recharge Time3 h
Battery Charge Power102 W
Waveform TypeSine wave
Harmonic DistortionLess than 2%
Surge Energy Rating432 J
Heat Dissipation317 Btu/h
Operating Temperature32 to 104 °F
IP Degree of ProtectionIP20
Storage Relative Humidity0 to 95% non-condensing
Rack Units2U
Height3.35 in (85 mm)
Depth20.00 in (508 mm)
Mounting ModeRack-mounted, front horizontal
USB CompatibleYes
ColorBlack
