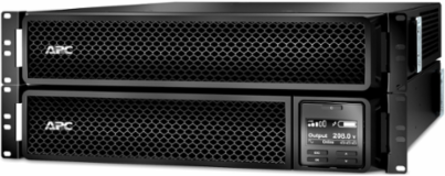

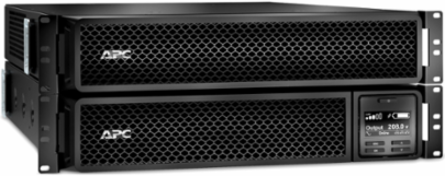

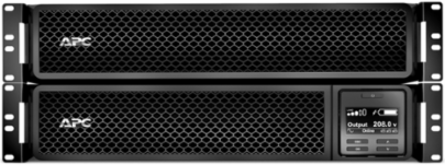

APC SRT3000RMXLT-5KTF Smart-UPS On-Line 3000VA Rackmount 4U 208V with 12x 5-20R+2x L6-20R Outlets

MPN: SRT3000RMXLT-5KTF
UPC: 731304634720
PPN: APC-SRT3000RMXLT-5KTF

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-20P input, 12x NEMA 5-20R and 2x NEMA L6-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Features

Text and mimic diagrams that display modes of operation, system parameters and alarms.
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
3kVA/2.7kW double-conversion on-line pure sine wave 4U rackmount UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit included)
Delivers clean power with zero transfer time for critical or sensitive devices
Add up to 10 external battery packs (SRT96RMBP) for extended runtime
Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

Documentation & Downloads

Specifications

Additional

Output Power Capacity	3000 VA
Input Voltage	208 V, 240 V
Input Connection Type	NEMA L6-20P
Rack Height	4U
Battery Type	Lead-Acid battery
Typical Recharge Time	3 h
Height	6.69 in (170 mm)
Depth	25.00 in (635 mm)
Topology	Double Conversion Online
Surge Energy Rating	340 J
RoHS	Compliant with Exemptions
Product Orientation	lower
Replacement Battery	APCRBC152

Power	2700 W
Nominal Output Voltage	120 V, 208 V, 240 V

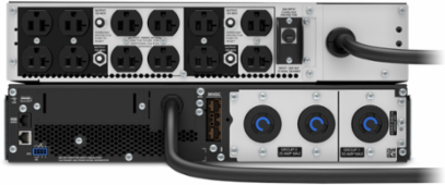

Output Connections	12 NEMA 5-20R, 2 NEMA L6-20R
Cord Length	10 ft (3.05 m)
Battery Voltage	96 V
Battery Life	3-5 years
Width	17.01 in (432 mm)
Weight	164.00 lb (74.39 kg)
Waveform Type	Sine wave
Approvals	ENERGY STAR V2.0 (USA)
Mount Position	front, horizontal
Color	Black
