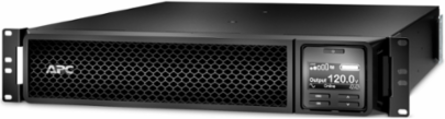

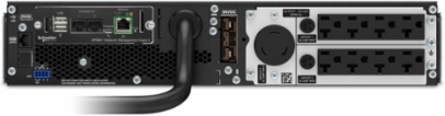

APC SRT3000RMXLA-NCUS Smart-UPS On-Line 3000VA Rackmount 2U 120V 8x5-20R+1xL5-30R NEMA Outlets
- MPN: SRT3000RMXLA-NCUS
- UPC: 731304740605
- PPN: APC-SRT3000RMXLA-NCUS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS On-Line 3000VA Rackmount 2U 120V 8x5-20R+1xL5-30R NEMA Outlets
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 3000 VA, 2700 W
- Output Voltage
- 120 V
- Output Connections
- 8 NEMA 5-20R, 1 NEMA L5-30R
- Cable Length
- 8 ft (2.44 m)
- Battery Voltage
- 96 V
- Battery Life
- 3-5 years
- Width
- 17.01 in (432 mm)
- Weight
- 69.00 lb (31.3 kg)
- Output Frequency
- 50/60 Hz ± 3 Hz sync to mains
- Harmonic Distortion
- < 2%
- Bypass Type
- Internal Bypass (Automatic and Manual)
- Heat Dissipation
- 805 Btu/h
- Storage Temperature
- 5-113 °F (-15-45 °C)
- Storage Altitude
- 0-50000 ft
- Storage Relative Humidity
- 0-95% non-condensing
- Surge Energy Rating
- 340 J
- Approvals
- ENERGY STAR V2.0 (USA), TAA
- Topology
- Double Conversion Online
- Mount Position
- front, horizontal
- Customs Number
- 8504407018
- Color
- Black
Input Voltage120 V
Input ConnectionNEMA L5-30P
Rack Units2U
Battery TypeLead-Acid battery
Typical Recharge Time3 h
Height3.35 in (85 mm)
Depth25 in (635 mm)
Input Frequency40-70 Hz auto-sensing
Waveform TypeSine wave
Crest Factor3:1
Acoustic Level55 dBA
Operating Temperature32-104 °F (0-40 °C)
Operating Altitude0-10000 ft
Relative Humidity0-95% non-condensing
IP Degree of ProtectionIP20
ComplianceENERGY STAR V2.0 (USA), TAA
RoHSCompliant with Exemptions
Replacement BatteryAPCRBC152
Product Orientationlower
Country of OriginMexico
