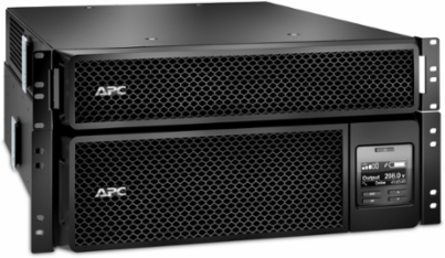

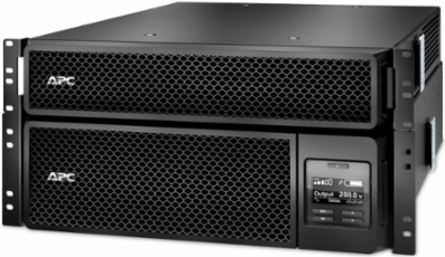

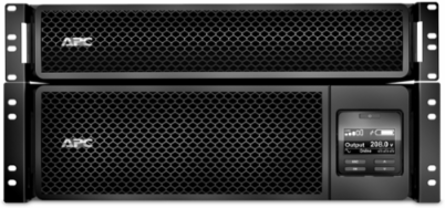

APC SRT5KRMXLT-5KTF Smart-UPS On-Line 5kVA Rackmount 5U 208V, 12 NEMA 5-20R, 2 L6-20R, 2 L6-30R
- MPN: SRT5KRMXLT-5KTF
- UPC: 731304739807
- PPN: APC-SRT5KRMXLT-5KTF
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

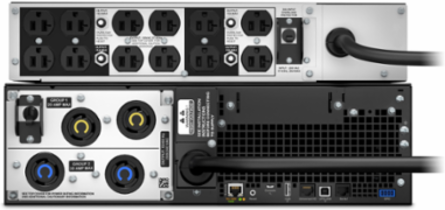

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 12 NEMA 5-20R, 2 NEMA L6-30R, and 2 NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Features

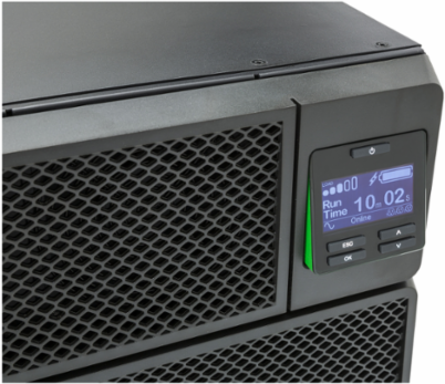

- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- 10/100 BaseT Connection — Connect the device to a network using a 10 or 100 BaseT connection
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- 5kVA/4.8kW double-conversion on-line pure sine wave 5U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- 1-Year Secure Network Management Card subscription included
- Add up to 10 external battery packs (SRT192RMBP) for extended runtime
- Embedded Network Management Card for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- SmartSlot for additional communication options
- Delivers clean power with zero transfer time for critical or sensitive devices
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 5000 VA, 4800 W |
|---|---|
| Nominal Output Voltage | 120 V |
| Output Connections | 12 NEMA 5-20R, 2 NEMA L6-20R, 2 NEMA L6-30R |
| Waveform Type | Sine wave |
| Surge Energy Rating | 480 J |
| Cord Length | 10 ft (3.05 m) |
| Height | 8.58 in (218 mm) |
| Depth | 28.31 in (719 mm) |
| Product Orientation | No preference |
| Battery Voltage | 192 V |
| Approvals | ENERGY STAR V2.0 (USA) |
| Mercury Free | Yes |
| California Proposition 65 | Prop 65 Warning: Contains lead compounds |
| Input Voltage | 208 V |
|---|---|
| Input Connection Type | NEMA L6-30P |
| Typical Recharge Time | 1.5 h |
| Topology | Double Conversion Online |
| Rack Height | 5U |
| Weight | 217.99 lb (98.88 kg) |
| Width | 17.01 in (432 mm) |
| Mount Position | Front, horizontal |
| Battery Type | Lead-Acid battery |
| Battery Replacement Part | APCRBC140 |
| RoHS | Compliant with Exemptions |
| Reach | Contains SVHC above threshold |
| Color | Black |
