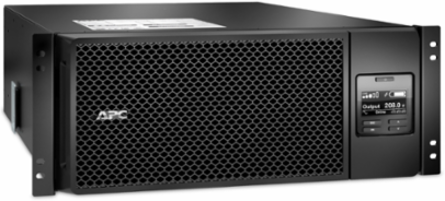

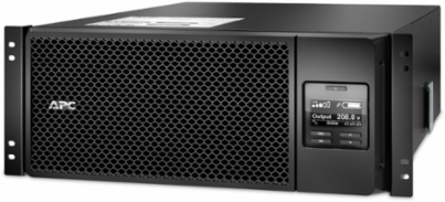

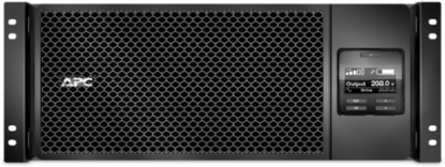

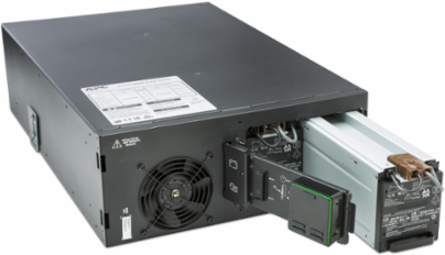

APC SRT6KRMXLT-IEC Smart-UPS On-Line 6kVA/6kW Rackmount 4U 208V with 6x C13+4x C19 Outputs

MPN: SRT6KRMXLT-IEC
UPC: 731304308539
PPN: APC-SRT6KRMXLT-IEC

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Features

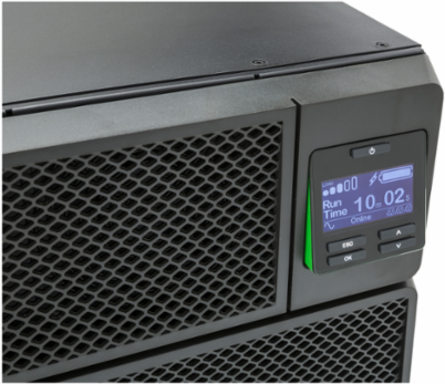

Text and mimic diagrams that display modes of operation, system parameters and alarms.
Connect the device to a network using a 10 or 100 BaseT connection
UPS requires a hard wire input in order to deliver maximum output wattage to protected equipment
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
6kVA/6kW double-conversion on-line pure sine wave 4U rackmount UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit included)
1-Year Secure Network Management Card subscription included
Add up to 10 external battery packs (SRT192RMBP) for extended runtime
Embedded Network Management Card for network-based UPS monitoring & management
Graceful shutdown of physical servers, virtual machines and HCI Clusters
SmartSlot for additional communication options
Delivers clean power with zero transfer time for critical or sensitive devices

Documentation & Downloads

Specifications

Additional

Power Rating	6000 VA (6 kVA, 6 kW)
Output Voltage	208 V
Battery Type	Lead-Acid battery
Topology	Double Conversion Online
Surge Energy Rating	480 J
Height	6.85 in (174 mm)
Depth	28.31 in (719 mm)
Mount Position	front, horizontal
RoHS	Compliant with Exemptions
Warranty	3 years repair or replace, 2 years for battery

Input Voltage	208 V

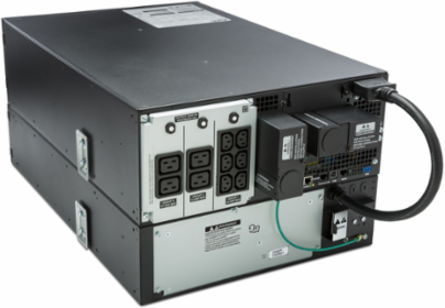

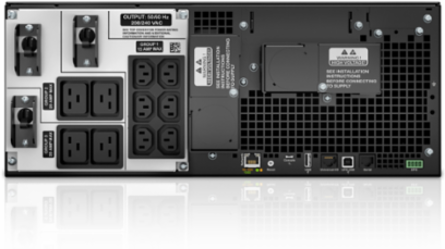

Output Connections	Hard Wire 3-wire (2PH + G), 6 IEC 60320 C13, 4 IEC 60320 C19, 2 IEC Jumpers
Typical Recharge Time	1 h
Waveform Type	Sine wave
Rack Height	4U
Width	17.01 in (432 mm)
Weight	134.99 lb (61.23 kg)
Approvals	ENERGY STAR V2.0 (USA), FCC part 15 class A, UL 1778
California Proposition 65	Prop 65 Compliant
Color	Black
