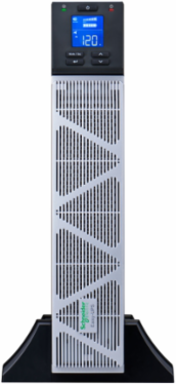

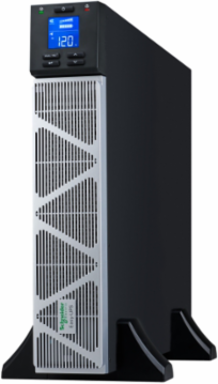

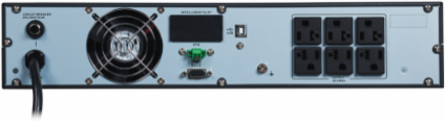

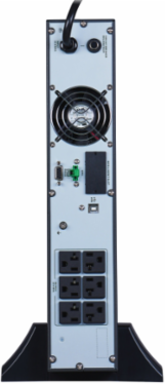

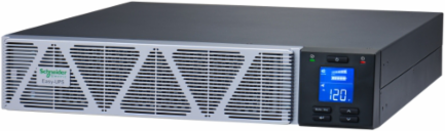

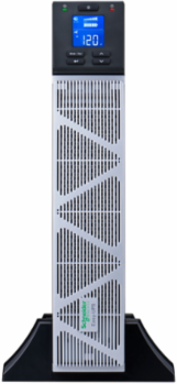

APC SRVSL2KRARK Easy UPS On-Line 2000VA 120V Li-Ion, Rack/Tower Convertible, 2U Height
- MPN: SRVSL2KRARK
- UPC: 731304439233
- PPN: APC-SRVSL2KRARK
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 120V 2000VA Standard built-in runtime model with rail kit More real output power in watts 0.9 PF Up to 90% efficiency in on-line double conversion mode and up to 96% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 502mm (depth) x 86mm (height) 2U in total. The net weighs is 16.6kg. It's ideal for Building, Electrical Distribution companies, Machine Automation, System Integrators, Equipment Manufacturers, Technology and Solution Partners. cTUVus, NOM, RETIE, UN38.3 Managemnt Card (Network Management card, Dry contact card, modbus Card) and RBC options are available. Rack/ Tower convertible design with default accessory kit.
Features
- Intelligent Card Slot — Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
- Lithium — ion battery-Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Serial connectivity — Provides management of the UPS via a serial port.
- USB connectivity — Provides management of the UPS via a USB port (not available on all models).
- Lithium-ion battery allows longer battery lifetime, longer runtime, lighter and space saving compared to VRLA.
- Lower Total Cost of Ownership (TCO) by minimizing battery replacement and labor costs during the longer life of the UPS.
- Provides flexibility to change from a rack to tower installation using default accessories.
- Simplified Monitoring and Management. PowerChute™ Serial Shutdown software provides graceful shutdown.
- Optional Network Management Card AP9544 supports network-based monitoring and management of Easy UPS Online Lithium-ion.
- Emergency Power Off (EPO) funtion can remote UPS shutoff in the event of a fire or other emergency.
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 2000 VA / 1800 W |
|---|---|
| Input Connection | NEMA 5-20P |
| Output Voltage | 120 V |
| Output Connections | 6 NEMA 5-20R |
| Typical Recharge Time | 1.5 hours |
| Dimensions (W x H x D) | 43.8 x 3.39 x 50.2 cm (17.24 x 3.39 x 19.76 in) |
| Width | 43.8 cm (17.24 in) |
| Surge Energy Rating | 220 |
| RoHS Compliance | Compliant |
| Warranty | 3 years repair or replace |
| Input Voltage | 120 V |
|---|---|
| Topology | Double conversion online |
| Waveform Type | Sine wave (pure) |
| Battery Type | Lithium-Ion |
| Rack Height | 2U |
| Depth | 50.2 cm (19.76 in) |
| Height | 8.6 cm (3.39 in) |
| Approvals | NOM, RETIE, TUV C-US certified, UL 1778, UL 1973, UN 38.3 |
| Color | Black with silver front bezel |
