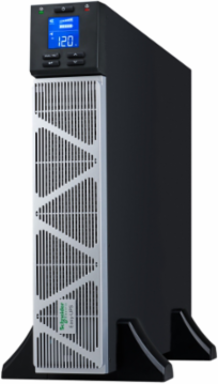

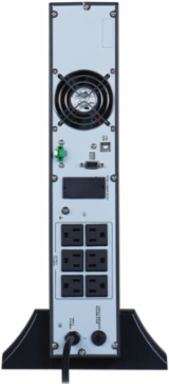

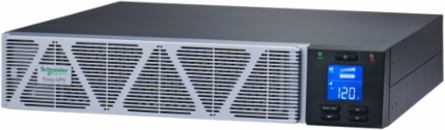

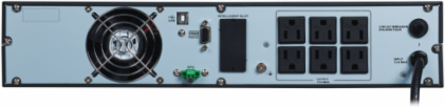

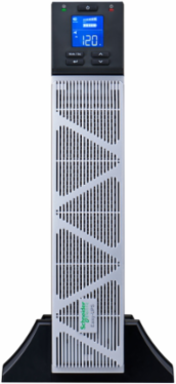

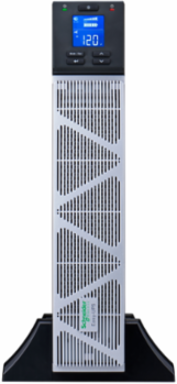

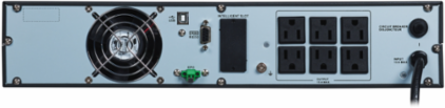

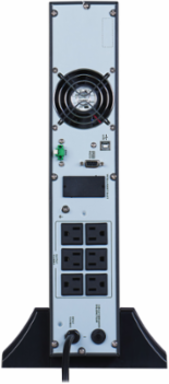

APC SRVSL1KRARK Easy UPS On-Line 1000VA 120V, 2U Rack/Tower, Li-Ion Battery, Sine Wave

MPN: SRVSL1KRARK
UPC: 731304439226
PPN: APC-SRVSL1KRARK

$3410.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 120V 1000VA Standard built-in runtime model with rail kit More real output power in watts 0.9 PF Up to 90.69% efficiency in on-line double conversion mode and up to 95% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 452mm (depth) x 86mm (height) 2U in total. The net weighs is 13kg. It's ideal for Building, Electrical Distribution companies, Machine Automation, System Integrators, Equipment Manufacturers, Technology and Solution Partners. cTUVus, NOM, RETIE, UN38.3 Managemnt Card (Network Management card, Dry contact card, modbus Card) and RBC options are available. Rack/ Tower convertible design with default accessory kit.

Features

Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Provides management of the UPS via a serial port.
Provides management of the UPS via a USB port not available on all models.
Lithium-ion battery allows longer battery lifetime, longer runtime, lighter and space saving compared to VRLA.
Lower Total Cost of Ownership (TCO) by minimizing battery replacement and labor costs during the longer life of the UPS.
Provides flexibility to change from a rack to tower installation using default accessories.
Simplified Monitoring and Management. PowerChute™ Serial Shutdown software provides graceful shutdown.
Optional Network Management Card AP9544 supports network-based monitoring and management of Easy UPS Online Lithium-ion.
Emergency Power Off (EPO) funtion can remote UPS shutoff in the event of a fire or other emergency.

Documentation & Downloads

Specifications

Additional

Power Rating	1000 VA
Input Voltage Range	80-150 V
Input Connection Type	NEMA 5-15P
Output Frequency	50/60 Hz 3 Hz
Waveform Type	Sine wave (pure sinewave)
Battery Type	Lithium-Ion (Li-Ion)
Battery Voltage	38.4 V
Runtime at Half Load	20 mins
Rack Height	2U (3.39 in / 8.6 cm)
Net Weight	13 kg
Operating Temperature	0 C to 40 C
Operating Elevation	0 to 2,000 m at 100% load
Protection Class	IP 20
Warranty	3 years repair or replace

Input Voltage	120 V
Input Frequency	40-70 Hz
Nominal Output Voltage	120 V
Topology	Double conversion online
Output Connections	6 NEMA 5-15R
Battery Capacity	6 Ah
Typical Recharge Time	1.5 hours to 90% capacity
Runtime at Full Load	10 mins
Dimensions (WxHxD)	43.8 x 8.6 x 45.2 cm (17.24 x 3.39 x 17.8 in)
Color	Black with silver front bezel
Relative Humidity	0 to 95% non-condensing
Audible Noise	Less than 50 dB
Compliance	UL 1778, cTUVus (TUV C-US), NOM, RETIE, UL 1973, UN 38.3, RoHS Compliant
