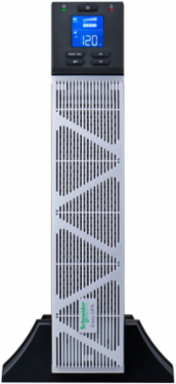

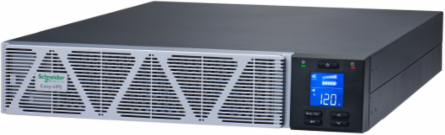

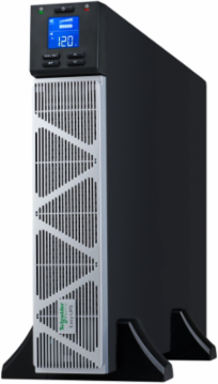

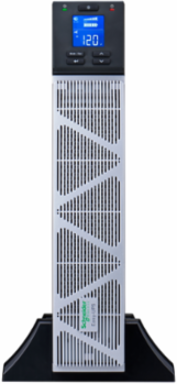

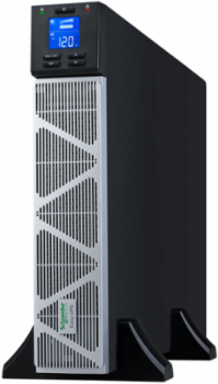

APC SRVSL3KRARK Easy UPS On-Line 3000VA 120V, 17.24 Inch Wide, Li-Ion Battery, Rack/Tower Convertible
- MPN: SRVSL3KRARK
- UPC: 731304439240
- PPN: APC-SRVSL3KRARK
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 120V 3000VA Standard built-in runtime model with rail kit More real output power in watts 0.9 PF Up to 90% efficiency in on-line double conversion mode and up to 96% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 632mm (depth) x 86mm (height) 2U in total. The net weighs is 22.1kg. It's ideal for Building, Electrical Distribution companies, Machine Automation, System Integrators, Equipment Manufacturers, Technology and Solution Partners. cTUVus, NOM, RETIE, UN38.3 Managemnt Card (Network Management card, Dry contact card, modbus Card) and RBC options are available. Rack/ Tower convertible design with default accessory kit.
Features
- Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
- Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
- Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Provides management of the UPS via a serial port.
- Provides management of the UPS via a USB port not available on all models.
- Lithium-ion battery allows longer battery lifetime, longer runtime, lighter and space saving compared to VRLA.
- Lower Total Cost of Ownership (TCO) by minimizing battery replacement and labor costs during the longer life of the UPS.
- Provides flexibility to change from a rack to tower installation using default accessories.
- Simplified Monitoring and Management. PowerChute™ Serial Shutdown software provides graceful shutdown.
- Optional Network Management Card AP9544 supports network-based monitoring and management of Easy UPS Online Lithium-ion.
- Emergency Power Off (EPO) funtion can remote UPS shutoff in the event of a fire or other emergency.
Documentation & Downloads
Specifications
Additional
| Output Power Capacity, VA | 3000 VA / 2700 W |
|---|---|
| Input Voltage Range at Full Load (60% load) | 80 - 150 V (55 - 150 V) |
| Input Connection Type | NEMA L5-30P |
| Output Frequency | 50/60 Hz b1 3 Hz |
| Waveform Type | Sine wave |
| Typical recharge time | 1.5 hours |
| Surge Energy Rating | 220 |
| Efficiency ECO Mode | Up to 96% |
| Runtime at Full Load | 9 mins |
| Operating Temperature | 0b0C to 40b0C |
| Operating Elevation | 0 to 2,000 m at 100% load, derates to 3,000 m |
| Approvals | UL 1778, cTUVus, NOM, RETIE, UL 1973, UN 38.3, UL 60730-1, IEC 60730-1 |
| Rack Height | 2 U |
| Depth | 24.88 in (63.2 cm) |
| Battery Capacity | 12 Ah |
| Interface Ports | Serial RS-232, USB (type B), Intelligent Smart-Slot |
| Audible Noise | Less than 50 dB |
| Battery Technology | Lithium-ion, twice life of typical lead acid battery |
| LCD Display | Intuitive, multi-language, configurable with navigation keys |
| Color | Black with silver front bezel |
| Nominal Input Voltage | 120 V |
|---|---|
| Input Frequency | 40 - 70 Hz |
| Nominal Output Voltage | 120 V |
| Topology | Double conversion online |
| Battery Type | Li-Ion (Lithium-Ion) |

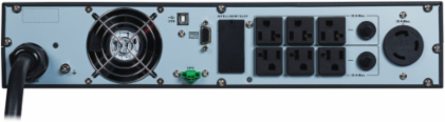

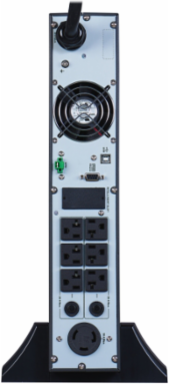

| Output Connections | 7 (6) NEMA 5-20R, (1) NEMA L5-30R |
| Efficiency Double Conversion Mode | Up to 90% |
| Runtime at Half Load | 18 mins |
| Emergency Power Off (EPO) | Yes (NC contacts) |
| Relative Humidity | 0 to 95% non-condensing |
| Protection Class | IP 20 |
| RoHS | Compliant |
| Width | 17.24 in (43.8 cm) |
| Height | 3.39 in (8.6 cm) |
| Battery Voltage | 48 V |
| Control Panel | LED indicators, multi-function LCD, status and display console |
| Rack Mounting Support | Rails and brackets |
| Form Factor | Rack/Tower convertible |
| Connectivity | USB, Serial RS-232, Intelligent Smart-Slot |
