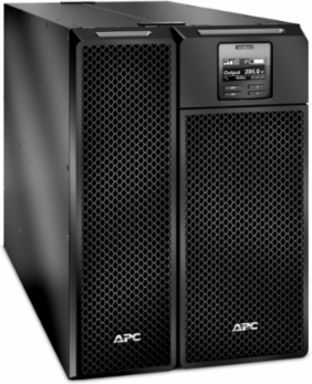

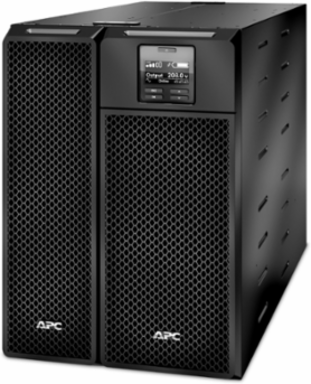

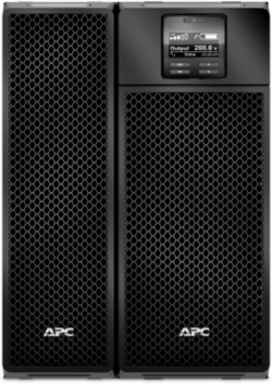

APC SRT6KXLT-5KTF Smart-UPS 6kVA Tower, 208V, Sine Wave, 6000 VA Output Power, 259.99 lb
- MPN: SRT6KXLT-5KTF
- UPC: 731304732952
- PPN: APC-SRT6KXLT-5KTF
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 8x NEMA 5-20R, 4x NEMA L6-20R, 3x NEMA L6-30R, and 1x NEMA L14-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Features
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Connect the device to a network using a 10 or 100 BaseT connection
- UPS requires a hard wire input in order to deliver maximum output wattage to protected equipment
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- 6kVA/6kW double-conversion on-line pure sine wave tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
- 1-Year Secure Network Management Card subscription included
- Add up to 10 external battery packs (SRT192BP) for extended runtime
- Embedded Network Management Card for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- SmartSlot for additional communication options
- Delivers clean power with zero transfer time for critical or sensitive devices
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 6000 VA, 6000 W |
|---|---|
| Nominal Output Voltage | 120 V, 208 V, 240 V |
| Topology | Double Conversion Online |
| Waveform Type | Sine wave |
| Width | 11.97 in (304 mm) |
| Weight | 259.99 lb (117.93 kg) |
| Battery Type | Lead-Acid battery |
| Approvals | ENERGY STAR V2.0 (USA), FCC part 15 class A, UL 1778 |
| California Proposition 65 | Contains lead compounds - Prop 65 Warning |
| Input Voltage | 208 V, 240 V |
|---|---|

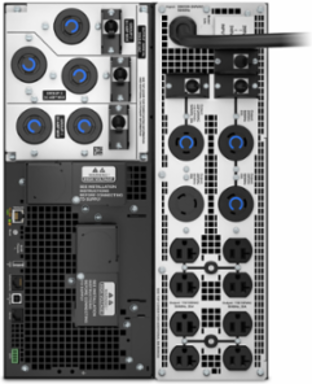

| Output Connections | Hard Wire 3-wire (2PH + G), 8 NEMA 5-20R, 4 NEMA L6-20R, 3 NEMA L6-30R, 1 NEMA L14-30R |
| Surge Energy Rating | 480 J |
| Height | 17.01 in (432 mm) |
| Depth | 28.31 in (719 mm) |
| Mounting Position | Vertical |
| Recharge Time | 1.5 h |
| RoHS | Compliant with Exemptions |
| Color | Black |
