APC SRT5KXLT-5KTF Smart-UPS 5000 VA, 208V, Tower, 248 lb, 8x 5-20R, 4x L6-20R, NEMA L6-30P
- MPN: SRT5KXLT-5KTF
- UPC: 731304739814
- PPN: APC-SRT5KXLT-5KTF
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 5000 VA, 208V, Tower, 248 lb, 8x 5-20R, 4x L6-20R, NEMA L6-30P
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- 10/100 BaseT Connection — Connect the device to a network using a 10 or 100 BaseT connection
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 5000 VA
- Input Voltage
- 208 V, 240 V input
- Input Connection Type
- NEMA L6-30P
- Cable Length
- 10 ft (3.05 m)
- Dimensions
- 17.01 in (H) x 10.20 in (W) x 28.31 in (D)
- Battery Type
- Lead-Acid
- Typical Recharge Time
- 1.5 h
- Input Frequency
- 40 - 70 Hz auto-sensing
- Harmonic Distortion
- Less than 2%
- Acoustic Level
- 55 dBA
- Operating Altitude
- 0 to 10,000 ft
- Relative Humidity
- 0 to 95% non-condensing
- Operating Temperature Range
- 32 to 104 °F (0 to 40 °C)
- Surge Energy Rating
- 480 J
- Color
- Black
- Replacement Battery
- APCRBC140
- Reach
- Contains SVHC above threshold
- Mount Position
- Vertical
- Customs Number
- 8504407018
Power4800 W
Nominal Output Voltage120 V, 208 V, 240 V output

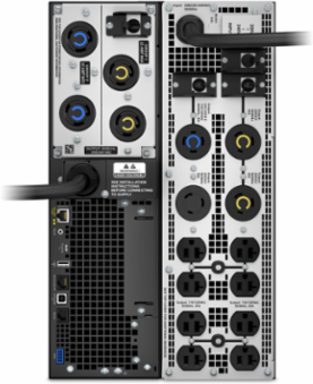

Output Connection Types8x NEMA 5-20R, 4x NEMA L6-20R, 2x NEMA L6-30R, 1x NEMA L14-30R
Weight248 lb (112.49 kg)
TopologyDouble Conversion Online
Battery Voltage192 V
Battery Life3 to 5 years
Output Frequency50/60 Hz ± 3 Hz sync to mains
Bypass TypeInternal Bypass (Automatic and Manual)
Heat Dissipation1047 Btu/h
IP Degree of ProtectionIP20
Storage Temperature Range5 to 113 °F (-15 to 45 °C)
ComplianceENERGY STAR V2.0 (USA)
RoHSCompliant with Exemptions
Warranty36 months
Product OrientationNo preference
California Proposition 65Prop 65 Compliant
Waveform TypeSine wave
