APC SMX3000HVT Smart-UPS X 3kVA Line Interactive Rack/Tower 4U 208V, 2 NEMA L6-20R, 4 IEC C13, 85.19 lb

  • MPN: SMX3000HVT
  • UPC: 731304292630
  • PPN: APC-SMX3000HVT

CAD

$4194.03

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Features

  • 3kVA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
  • User-selectable high voltage setting of 200V-240V
  • Add up to 10 external battery packs (SMX120BP)
  • Short depth UPS provides extra space for cable management
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for servers, storage, networking & commercial applications

Documentation & Downloads

Specifications

Additional

Output Power Capacity3000 VA
Output Voltage208 V
Input Frequency50/60 Hz 3 Hz auto-sensing
Transfer Time2-4 ms
Crest Factor3:1
Typical Power Output2700 W
Rack Height4U
Width7.01 in (178 mm)
Weight85.19 lb (38.64 kg)
Input Connection TypeNEMA L6-20P
Battery TypeLead-Acid battery
Operating Temperature Range32-104 F (0-40 C)
Relative Humidity0-95 %
Heat Dissipation184 Btu/h
CertificationsC-tick, CE, CSA, GOST, IRAM, VDE
Mercury FreeYes
Reach ComplianceContains SVHC above threshold
ColorBlack
Input Voltage208 V
Input Voltage Range141-255 V
Output Frequency50/60 Hz 3 Hz synced to mains
Harmonic Distortion< 5%
TopologyLine Interactive
Surge Energy Rating645 J
Height17.01 in (432 mm)
Depth19.02 in (483 mm)
Mounting ModeRack-mounted (Front, Lower)
Output Connections2 NEMA L6-20R, 4 IEC 320 C13, 2 IEC 320 C19, 3 IEC Jumpers
Typical Recharge Time3 h
Storage Temperature Range5-113 F (-15-45 C)
Acoustic Noise Level55 dBA
Waveform TypeSine wave
RoHSCompliant with Exemptions
WEEE ComplianceEU waste collection compliant
California Proposition 65Prop 65 Warning for Lead and Lead Compounds
Country of OriginPhilippines

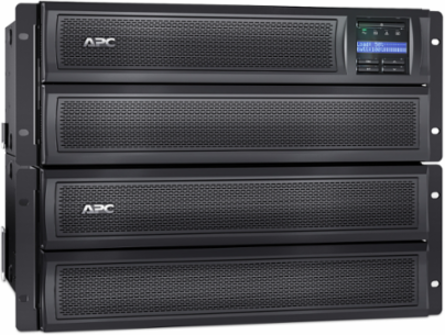

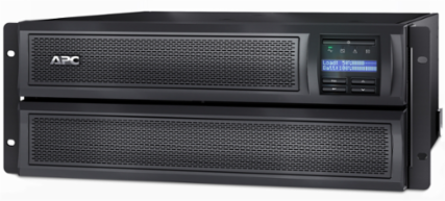

Smart-UPS X 3kVA Line Interactive Rack/Tower 4U 208V, 2 NEMA L6-20R, 4 IEC C13, 85.19 lb

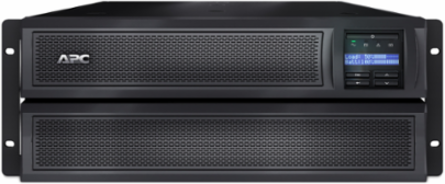

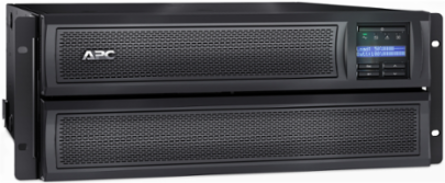

Smart-UPS X 3kVA Line Interactive Rack/Tower 4U 208V, 2 NEMA L6-20R, 4 IEC C13, 85.19 lb

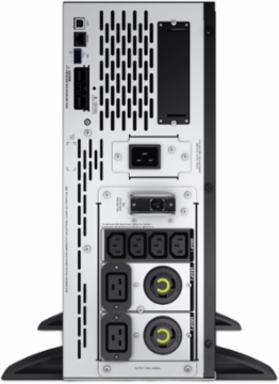

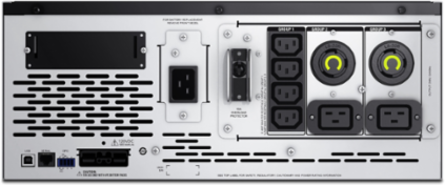

Smart-UPS X 3kVA Line Interactive Rack/Tower 4U 208V, 2 NEMA L6-20R, 4 IEC C13, 85.19 lb

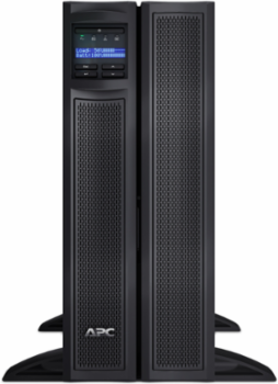

Smart-UPS X 3kVA Line Interactive Rack/Tower 4U 208V, 2 NEMA L6-20R, 4 IEC C13, 85.19 lb

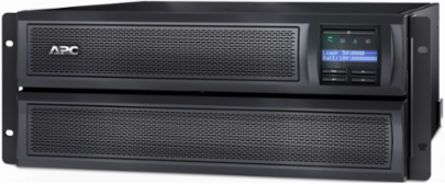

Smart-UPS X 3kVA Line Interactive Rack/Tower 4U 208V, 2 NEMA L6-20R, 4 IEC C13, 85.19 lb

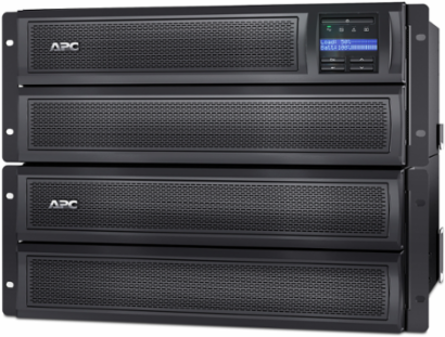

Smart-UPS X 3kVA Line Interactive Rack/Tower 4U 208V, 2 NEMA L6-20R, 4 IEC C13, 85.19 lb

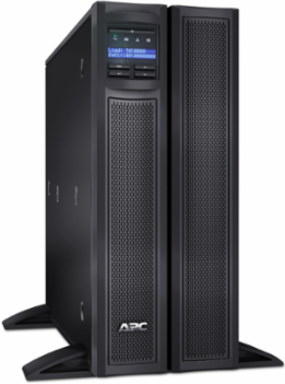

Smart-UPS X 3kVA Line Interactive Rack/Tower 4U 208V, 2 NEMA L6-20R, 4 IEC C13, 85.19 lb

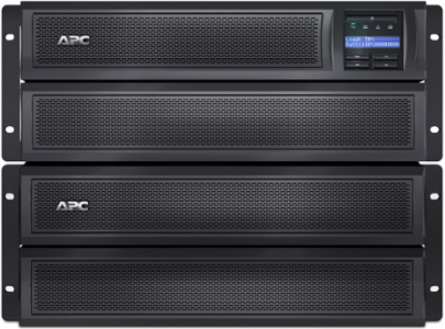

Smart-UPS X 3kVA Line Interactive Rack/Tower 4U 208V, 2 NEMA L6-20R, 4 IEC C13, 85.19 lb
