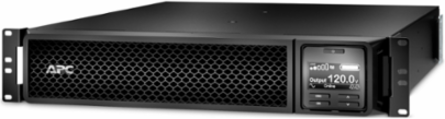

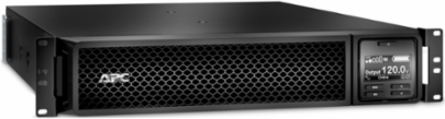

APC SRT1000RMXLA Smart-UPS On-Line 1000VA Rackmount 2U 120V 6x 5-15R NEMA Outlets
- MPN: SRT1000RMXLA
- UPC: 731304329961
- PPN: APC-SRT1000RMXLA
CAD
$2335.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS On-Line 1000VA Rackmount 2U 120V 6x 5-15R NEMA Outlets
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 1000 VA, 900 W
- Output Voltage
- 120 V
- Output Connections
- 6x NEMA 5-15R
- Cable Length
- 6 ft (1.83 m)
- Battery Voltage
- 48 V
- Battery Life
- 3-5 years
- Width
- 17.01 in (432 mm)
- Weight
- 48.5 lb (22 kg)
- Input Frequency Range
- 40-70 Hz auto-sensing
- Harmonic Distortion
- < 2%
- Bypass Type
- Built-in
- Storage Temperature Range
- -4 to 122 °F (-20 to 50 °C)
- Storage Altitude
- 0 to 50,000 ft
- IP Rating
- IP20
- Waveform Type
- Sine wave
- RoHS Compliance
- Compliant with Exemptions
- California Prop 65
- Prop 65 Compliant (contains lead)
- Color
- Black
- Warranty
- 3 years repair/replace (excluding battery), 2 years battery
Input Voltage120 V
Input ConnectionNEMA 5-15P
Rack Height2U
Battery TypeLead-Acid battery
Typical Recharge Time3 h
Height3.35 in (85 mm)
Depth20.00 in (508 mm)
Mounting TypeRack-mounted, front horizontal
Output Frequency50/60 Hz ± 3 Hz
Crest Factor3:1
Operating Temperature Range32 to 104 °F (0 to 40 °C)
Operating Altitude0 to 10,000 ft
Relative Humidity0-95% non-condensing
Surge Energy Rating432 J
TopologyDouble Conversion Online
ApprovalsENERGY STAR V2.0 (USA)
Mercury FreeYes
Country of OriginPhilippines
