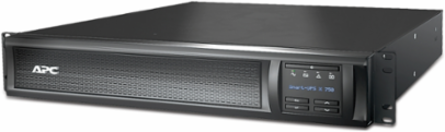

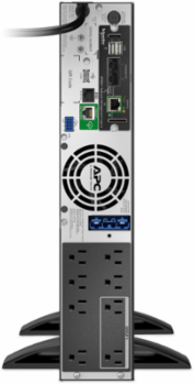

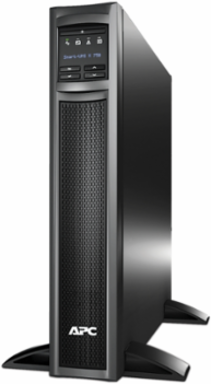

APC SMX750CNC Smart-UPS X Line Interactive 750VA 120V 2U Rack/Tower Convertible, 8x NEMA 5-15R
- MPN: SMX750CNC
- UPC: 731304401117
- PPN: APC-SMX750CNC
CAD
$2507.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Features
- Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Attach the device to an Emergency Power Off EPO system so that power can be turned off in an emergency situation.
- Reduces utility costs, generates less heat.
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Simulates utility power to provide the highest degree of compatibility for active PFC power factor corrected servers and sensitive electronics.
- Allows additional run time to be quickly added as needed.
- Provides temporary battery power when the utility power is out.
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Customize UPS capabilities with management cards.
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Updates and backups are automatically applied to always provide the most current solution.
- 750VA/675W line interactive pure sine wave 2U rack/tower UPS (rail kit SU032A sold separately)

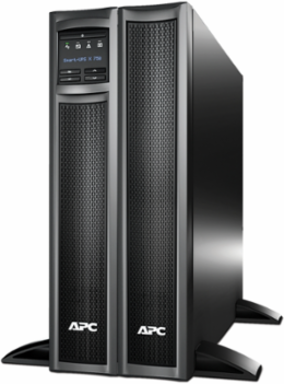

- Add up to 5 external battery packs (SMX48RMBP2U)
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Preinstalled NMC for network-based UPS monitoring & management
- 1-Year Secure Network Management Card subscription included
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Ideal for servers, storage, networking & commercial applications
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
Documentation & Downloads
Specifications
Additional
| Power Capacity | 750 VA |
|---|---|
| Voltage | 120 V |
| Input Connection Type | NEMA 5-15P |
| Waveform Type | Sine wave |
| Full Load Runtime | 11 min 30 s at 660 W |
| Recharge Time | 3 h |
| Overcurrent Protection | 60 A |
| Maximum Short Circuit Withstand | 1000 kA |
| Efficiency at Full Load | 82-143 V adjustable |
| Height | 17.01 in |
| Depth | 19.29 in |
| Form Factor | 2U Rack/Tower Convertible |
| Battery Type | Lead-Acid battery |
| Replacement Battery | APCRBC116 |
| Heat Dissipation | 69 Btu/h |
| Storage Altitude | 0-50000 ft |
| Storage Temperature Range | 5 113 F (-15 45 C) |
| Surge Energy Rating | 645 J |
| RoHS | Compliant with Exemptions |
| Reach | Contains Substances of Very High Concern |
| Color | Black |
| Output Power | 675 W |
|---|---|
| Input Voltage | 120 V |
| Output Connections | 8 NEMA 5-15R |
| Topology | Line Interactive |
| Half Load Runtime | 27 min at 330 W |
| Maximum Input Current | 12 A |
| Switching Current Capacity | 15 A |
| Input Frequency | 50/60 Hz 3 Hz |
| Dimensions (H x W x D) | 17.01 in x 3.50 in x 19.29 in |
| Width | 3.50 in |
| Weight | 48.61 lb (22.05 kg) |
| Rack Height | 2U |
| Battery Design Life | 3-5 years |
| Acoustic Level | 40 dBA |
| Operating Altitude | 0-10000 ft |
| Operating Temperature Range | 32 104 F (0 40 C) |
| Relative Humidity | 0 95 % |
| Approvals | cUL Listed, ENERGY STAR V2.0 (USA) |
| Mercury Free | Yes |
| Country of Origin | Philippines |
