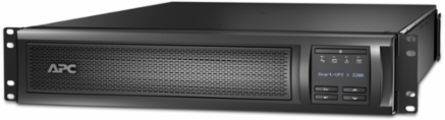

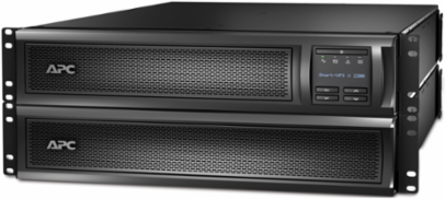

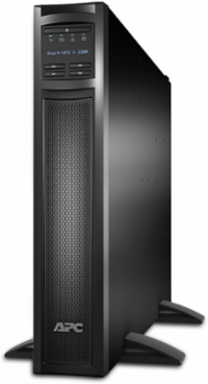

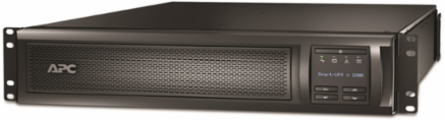

APC SMX2200R2HVNC Smart-UPS X 2200VA Line Interactive 2U Rack/Tower, 208V-230V, 8 C13+1 C19 Outputs
- MPN: SMX2200R2HVNC
- UPC: 731304327738
- PPN: APC-SMX2200R2HVNC
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Features
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Provides for remote management and control of the UPS over a network out of the box. — Provides for remote management and control of the UPS over a network out of the box.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 2200 VA, 1980 W |
|---|---|
| Nominal Output Voltage | 208 V, 230 V |
| Rack Height | 2U |
| Width | 17.01 in (432 mm) |
| Weight | 82.10 lb (37.24 kg) |
| Typical Recharge Time | 3 h |
| Waveform Type | Sine wave |
| Input Connection Type | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
| RoHS | Compliant with Exemptions |
| Lead Free | Yes |
| Operating Temperature Range | 32-104 F (0-40 C) |
| Operating Altitude | 0-10000 ft |
| Relative Humidity | 0-95% |
| Heat Dissipation | 150 Btu/h |
| Mount Position | front |
| Replacement Battery | APCRBC117 |
| Input Voltage | 208-230 V |
|---|---|

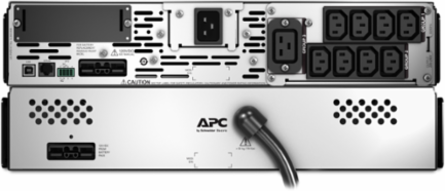

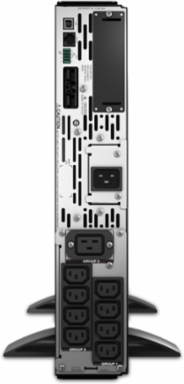

| Output Connections | 8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19 |
| Height | 3.35 in (85 mm) |
| Depth | 26.26 in (667 mm) |
| Battery Type | Lead-Acid battery |
| Topology | Line Interactive |
| Surge Energy Rating | 645 J |
| Compliance | CE, EAC, IRAM, RCM, TISI, VDE, UK PSTI |
| Reach | Contains Substances of Very High Concern above threshold |
| Mercury Free | Yes |
| Storage Temperature Range | 5-113 F (-15-45 C) |
| Storage Altitude | 0-50000 ft |
| Acoustic Level | 55 dBA |
| Country of Origin | Philippines |
| Product Orientation | lower |
