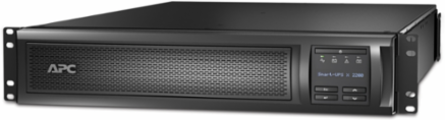

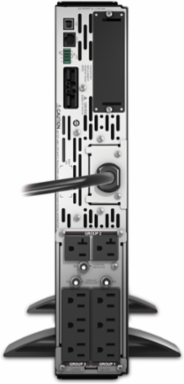

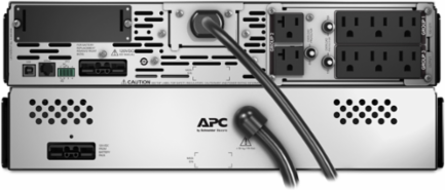

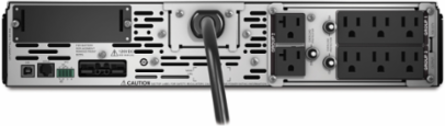

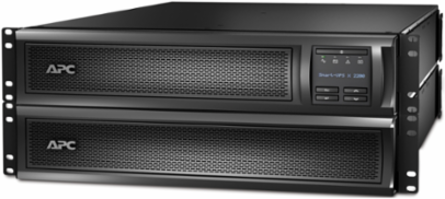

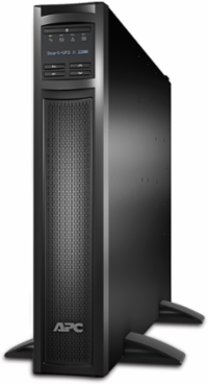

APC SMX2200RMLV2U Smart-UPS X 2200VA 2U Rack/Tower Convertible, 120V Output, 6x 5-15R, 2x 5-20R
- MPN: SMX2200RMLV2U
- UPC: 731304268567
- PPN: APC-SMX2200RMLV2U
CAD
$3679.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS X 2200VA 2U Rack/Tower Convertible, 120V Output, 6x 5-15R, 2x 5-20R
Features
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- Predictive failure notification. — Provides early-warning fault analysis ensuring proactive component replacement.
- Wide input voltage range — Designed for harsh electrical environments to save battery life.
- LED Indicators — Provide easy-to-read status of the unit and utility power conditions.
- Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload. — Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
- Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions. — Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
- Boost and Trim Automatic Voltage Regulation (AVR) — Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Serial connectivity — Provides management of the UPS via a serial port.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. — Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- UPS recognizes when external battery packs are attached and automatically adjusts runtime. — UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Disconnected battery notification — Warns when a battery is not available to provide backup power.
- Load shedding — Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Outlet group control — Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
- Scalable runtime — Allows additional run time to be quickly added as needed.
- Adjustable voltage sensitivity — Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points — Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms — Provides notification of changing utility power and UPS power conditions
- Automatic restart of loads after UPS shutdown — Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test — Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Network manageable — Provides remote power management of the UPS over the network.
- Power conditioning — Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Safety-agency approved — Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
- USB connectivity — Provides management of the UPS via a USB port (not available on all models).
- User-replaceable batteries — Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Frequency and voltage regulation — Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 2200 VA, 1980 W
- Output Voltage
- 120 V, 100 V, 110 V, 127 V
- Output Frequency
- 50/60 Hz ±3 Hz synced to mains
- Transfer Time
- 2-4 ms, max 8 ms
- Harmonic Distortion
- Less than 5%
- Battery Life
- 3-5 years
- Battery Hot-Swappable
- Yes
- Weight
- 84.77 lb (38.45 kg)
- Rack Height
- 2U
- Product Orientation
- lower
- Output Connection Type
- 6x NEMA 5-15R, 2x NEMA 5-20R
- Form Factor
- 2U Rack/Tower convertible
- Color
- Black
- Storage Temperature Range
- 5 to 113 °F (-15 to 45 °C)
- Storage Altitude
- 0 to 50,000 ft (0 to 15,240 m)
- Acoustic Noise Level
- 55 dBA
- Compliance Certifications
- BSMI, CSA, NOM, TÜV, VCCI Class A
- California Proposition 65
- Contains lead and lead compounds, Prop 65 Warning
- Country of Origin
- Philippines
Input Voltage Range100-127 V, 70-153 V at full load
Input Frequency50/60 Hz ±3 Hz auto-sensing
TopologyLine Interactive
Surge Energy Rating540 J
Battery TypeLead-Acid battery
Typical Recharge Time3 h
Replaceable BatteryAPCRBC117, user replaceable
Dimensions (H x W x D)3.35 in x 17.00 in x 26.26 in (85 mm x 431.8 mm x 667 mm)
Mount Positionfront
Input Connection TypeNEMA L5-30P
Cord Length8 ft (2.44 m)
Waveform TypeSine wave
Operating Temperature Range32 to 104 °F (0 to 40 °C)
Operating Altitude0 to 10,000 ft
Relative Humidity0 to 95%
Heat Dissipation268 Btu/h
RoHSCompliant with Exemptions
Mercury FreeYes
