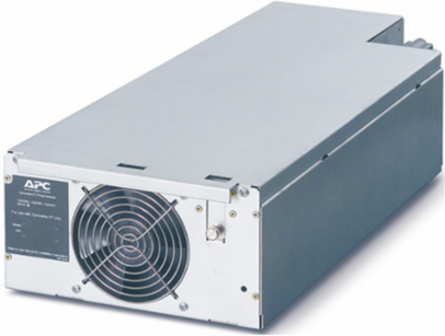

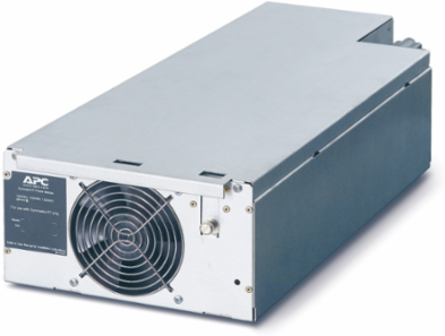

APC SYPM4KI Symmetra LX 4kVA Power Module, 220/230/240V, 33.07 lb, 4U Rack Height, Double Conversion Online
- MPN: SYPM4KI
- UPC: 731304218883
- PPN: APC-SYPM4KI
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Symmetra LX 4kVA Power Module, 220/230/240V, 33.07 lb, 4U Rack Height, Double Conversion Online
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 4000 VA
- Input Voltage
- 230 V, 400 V 3 phase
- Maximum Input Current
- 18 A
- Output Frequency
- 50 Hz 0.1%, 60 Hz 0.1%
- Topology
- Double Conversion Online
- Height
- 5.91 in (150 mm)
- Depth
- 22.24 in (565 mm)
- Weight
- 33.07 lb (15 kg)
- Output Connections
- Hard Wire 3-wire (H N + E) 1
- Storage Temperature Range
- 5 to 113 F (-15 to 45 C)
- Storage Relative Humidity
- 0 to 95%
- Storage Altitude
- 0 to 15000 ft
- Compliance Standards
- EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, IEC 60950
- WEEE
- EU waste disposal compliant
Power Rating2800 W
Output Voltage230 V
Input Frequency45-65 Hz auto-sensing
Input Power Factor0.98 at full load
Waveform TypeSine wave
Width9.84 in (250 mm)
Rack Height4U
Mount Positionfront
Operating Temperature Range32 to 104 F (0 to 40 C)
Operating Relative Humidity0 to 95%
Operating Altitude0 to 10000 ft
ApprovalsC-tick, CE, GOST, VDE
RoHS ComplianceCompliant with Exemptions
Warranty24 months
