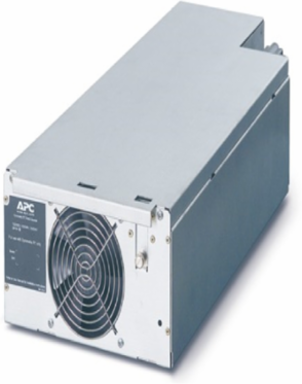

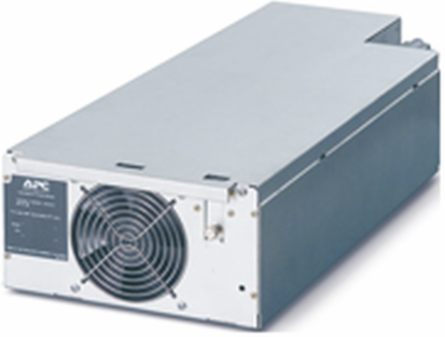

APC SYPM4KP Symmetra LX Power Module 4kVA, 200/208V, 18A, Sine Wave, 0U Rack Height
- MPN: SYPM4KP
- UPC: 731304218876
- PPN: APC-SYPM4KP
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Symmetra LX Power Module 4kVA, 200/208V, 18A, Sine Wave, 0U Rack Height
Documentation & Downloads
Specifications
Additional
| Power Capacity | 4000 VA (3200 W max configurable) |
|---|---|
| Output Voltage | 100 V, 120 V, 200 V, 208 V |
| Input Frequency | 45-65 Hz auto-sensing |
| Waveform Type | Sine wave |
| Crest Factor | Up to 5:1 |
| Height | 5.91 in (150 mm) |
| Depth | 22.24 in (565 mm) |
| Output Connector Type | Hard Wire 4-wire (2PH+N+G) |
| Input Power Factor | 0.98 |
| Operating Ambient Temperature | 32-104 F (0-40 C) |
| Operating Altitude | 0-10000 ft |
| Storage Relative Humidity | 0-95 % |
| Acoustic Level | 62 dBA |
| RoHS Compliance | Compliant with Exemptions |
| Color | Silver |
| Input Voltage | 200 V, 208 V |
|---|---|
| Maximum Input Current | 18 A |
| Output Frequency | 47-63 Hz sync to mains |
| Harmonic Distortion | < 5% at full load |
| Topology | Double Conversion Online |
| Width | 9.84 in (250 mm) |
| Weight | 33.07 lb (15 kg) |
| Rack Units | 0U |
| Efficiency at Full Load | 155-276 V |
| Operating Relative Humidity | 0-95 % |
| Storage Ambient Temperature | 5-113 F (-15-45 C) |
| Storage Altitude | 0-15000 ft (0-4572 m) |
| Certifications | CSA, FCC Part 15 class A, UL 1778 |
| Reach Compliance | Contains Substances of Very High Concern above threshold |
