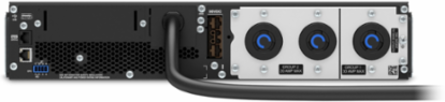

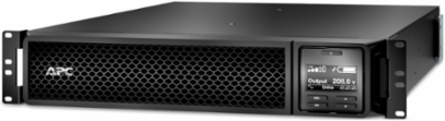

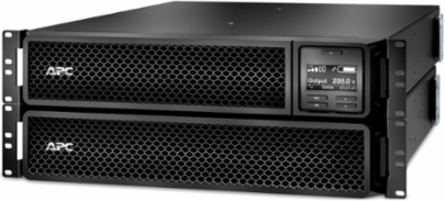

APC SRT3000RMXLTUS Smart-UPS On-Line 3kVA Rackmount 2U 208V 69 lb, Double Conversion Online

MPN: SRT3000RMXLTUS
UPC: 731304740636
PPN: APC-SRT3000RMXLTUS

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-20P input, 1x NEMA L6-30R and 2x NEMA L6-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The Smart-UPS is compliant with the Trade Agreements Act (TAA) requirements.

Features

3kVA/2.7kW double-conversion on-line pure sine wave 2U rackmount UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit included)
Delivers clean power with zero transfer time for critical or sensitive devices
Add up to 10 external battery packs (SRT96RMBP) for extended runtime
Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

Documentation & Downloads

Specifications

Additional

Output Power Capacity	3000 VA (3 kVA, 2700 W)
Output Voltage	208 V
Output Connection Type	2 NEMA L6-20R, 1 NEMA L6-30R
Cord Length	10 ft (3.05 m)
Battery Voltage	96 V
Typical Recharge Time	3 h
Height	3.35 in (85 mm)
Depth	25.00 in (635 mm)
Mount Position	front, horizontal rack-mounted
Output Frequency	50/60 Hz 3 Hz sync to mains
Waveform Type	Sine wave
Crest Factor	3:1
Heat Dissipation	773 Btu/h
Storage Altitude	0 50000 ft
Storage Temperature	5 113 F (-15 45 C)
IP Degree	IP20
Compliance	ENERGY STAR V2.0 (USA), TAA, RoHS compliant
Replacement Battery	APCRBC152
Country of Origin	Mexico
Product Orientation	lower

Input Voltage	208 V, 240 V
Input Connection Type	NEMA L6-20P
Rack Height	2U
Battery Type	Lead-Acid battery
Extendable Run Time	Yes, 1 module
Battery Life	3 5 years
Width	17.01 in (432 mm)
Weight	69.00 lb (31.3 kg)
Input Frequency	40 70 Hz auto-sensing
Topology	Double Conversion Online
Harmonic Distortion	< 2%
Acoustic Level	55 dBA
Operating Altitude	0 10000 ft
Operating Temperature	32 104 F (0 40 C)
Relative Humidity	0 95% non-condensing
Surge Energy Rating	340 J
Warranty	36 months
Customs Number	8504407018
Color	Black
