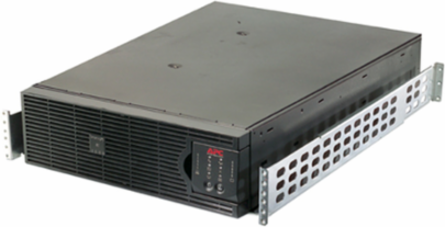

APC SURTD5000RMXLP3U Smart-UPS RT 5kVA 208V Rack 3U 128 lb Double Conversion Online
- MPN: SURTD5000RMXLP3U
- UPC: 731304258810
- PPN: APC-SURTD5000RMXLP3U
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS On-Line provides high-density, true double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute™ management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated network management card for remote management (optional on models below 5kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, internal bypass, and input power factor correction.
Features
- Multiple output voltages — 48Vdc, 24Vdc, and 120Vac are available to power all of the equipment in the cabinet.
- Multiple output voltages - 48V DC, 24V DC, and 120V AC are available
- Rack-mountable
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 5000 VA |
|---|---|
| Input Voltage | 208 V |
| Input Connection Type | NEMA L14-30P |
| Topology | Double Conversion Online |
| Input Frequency | 50/60 Hz ± 5 Hz auto-sensing |
| Harmonic Distortion | Less than 2% |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Rack Height | 3U |
| Height | 5.12 in (130 mm) |
| Depth | 25.98 in (660 mm) |
| Battery Type | Lead-Acid battery |
| Typical Recharge Time | 2.5 h |
| Replacement Battery | APCRBC140 |
| Heat Dissipation | 1589 Btu/h |
| Storage Altitude | 0 to 50000 ft (0 to 15240 m) |
| Ambient Air Temperature for Storage | 5 to 113 °F (-15 to 45 °C) |
| Relative Humidity | 0 to 95% non-condensing |
| Waveform Type | Sine wave |
| CSA Approval | CSA |
| Mercury Free | Yes |
| Output Power Rating | 4000 W |
|---|---|
| Output Voltage | 120 V, 208 V |
| Output Connection Type | 4 NEMA 5-20R, 1 NEMA L6-30R, 1 NEMA L14-30R |
| Energy Efficiency | Energy efficient |
| Output Frequency | 50/60 Hz ± 3 Hz user adjustable |
| Crest Factor | 3:1 |
| Surge Energy Rating | 365 J |
| Cord Length | 10 ft (3.05 m) |
| Width | 17.01 in (432 mm) |
| Weight | 128 lb (58.06 kg) |
| Included Battery Modules | 2 |
| Battery Life | 3 to 5 years |
| Acoustic Level | 55 dBA |
| Operating Altitude | 0 to 10000 ft |
| Ambient Air Temperature for Operation | 32 to 104 °F (0 to 40 °C) |
| IP Degree of Protection | IP20 |
| Storage Relative Humidity | 0 to 95% non-condensing |
| Warranty | 2 years repair or replace |
| RoHS Compliance | Compliant with Exemptions |
| Color | Black |
