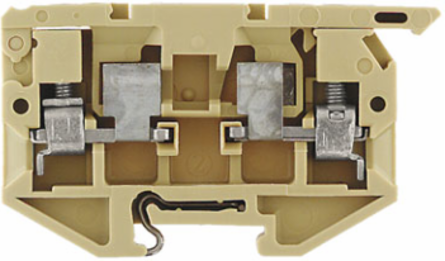

Weidmuller 0376760000 SAK Series Fuse Terminal Block, 4 mm2 Rated Cross-Section, Screw Connection
- MPN: 0376760000
- PPN: WDM-0376760000
CAD
$27.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Fuse terminal, Rated cross-section: 4 mm², Screw connection
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, EAC, MARITREG, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 8 mm
- Height
- 58 mm
- Depth
- 43 mm
- Net weight
- 12.99 g
Width (inches)0.315 inch
Height (inches)2.283 inch
Depth (inches)1.693 inch
Dimensions
- TS 32 offset
- 26.5 mm
Csa Rating Data
- Certificate No. (CSA)
- 200039-2372908
- Current size C (CSA)
- 10 A
- Voltage size B (CSA)
- 300 V
- Voltage size D (CSA)
- 300 V
- Wire cross section min. (CSA)
- 26 AWG
Current size B (CSA)10 A
Current size D (CSA)10 A
Voltage size C (CSA)300 V
Wire cross section max. (CSA)12 AWG
Additional Technical Data
- Explosion-tested version
- No
- Type of mounting
- Snap-on
Open sidesright
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourbeige / yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000899
- eClass 9.0
- 27-14-11-16
- eClass 10.0
- 27-14-11-16
ETIM 7.0EC000899
eClass 9.127-14-11-16
UNSPSC30-21-18-27
System Specifications
- Version
- Screw connection, Fuse isolator, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 32
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 4 mm²
Rating Data
- Rated cross-section
- 4 mm²
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
Rated voltage500 V
Power loss in accordance with IEC 60947-7-x1.02 W
Conductors For Clamping (Rated Connection)
- Connection cross-section, stranded, max.
- 4 mm²
- Number of connections
- 2
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Connection cross-section, stranded, min.1.5 mm²
Type of connectionScrew connection
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.4 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Voltage size C (UR)
- 300 V
Conductor size Factory wiring max. (UR)12 AWG
Conductor size Field wiring max. (UR)12 AWG
Current size C (UR)10 A
