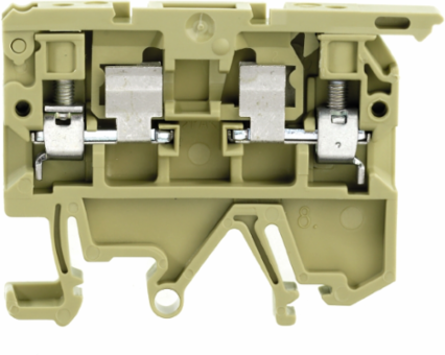

Weidmuller 0222760001 SAK Series Fuse Terminal Block, 2 Connections, 4 mm2, Screw Connection
- MPN: 0222760001
- PPN: WDM-0222760001
CAD
$14.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Fuse terminal, Rated cross-section: 4 mm², Screw connection
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 8.1 mm
- Height
- 58 mm
- Depth
- 43 mm
- Net weight
- 12.94 g
Width (inches)0.319 inch
Height (inches)2.283 inch
Depth (inches)1.693 inch
Additional Technical Data
- Type of mounting
- Snap-on
Material Data
- Material
- PA 66
UL 94 flammability ratingV-2
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000899
- eClass 9.0
- 27-14-11-16
- eClass 10.0
- 27-14-11-16
ETIM 7.0EC000899
eClass 9.127-14-11-16
System Specifications
- Version
- Screw connection, Fuse cartridge, One end without connector
- Number of clamping points per level
- 2
- PE connection
- No
Number of levels1
Levels cross-connected internallyNo
RailTS 35, TS 32
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 4 mm²
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
Rated voltage60 V
Power loss in accordance with IEC 60947-7-x1.02 W
Conductors For Clamping (Rated Connection)
- Number of connections
- 2
Type of connectionScrew connection
