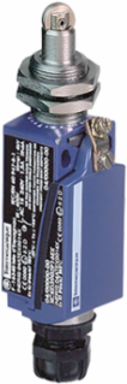

Telemecanique Sensors XCKD39H2P16EX Limit switch, Limit switches XC Standard, XCKD, roller plunger, 2NC + NO, ATEX/IECEx
- MPN: XCKD39H2P16EX
- PPN: TES-XCKD39H2P16EX
CAD
$398.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCKD, roller plunger, 2NC + NO, ATEX/IECEx
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 0.75 mm²
- Fixing Mode
- by the head
- Sensor Design
- compact
- Material
- metal
- Head Type
- M18 plunger head
- Type Of Approach
- lateral approach, 2 directions
- Contacts Type And Composition
- 2 NC + 1 NO
- Positive Opening
- with
- Contact Operation
- snap action
- Maximum Actuation Speed
- 0.5 m/s
- Device Short Name
- XCKD
Range Of ProductTelemecanique Limit switches XC Standard
Number Of Steps1
Type Of Operatorspring return roller plunger steel
Product Or Component Typelimit switch
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529
Switch Actuationby 30° cam
Series Namestandard format
Body Typefixed
Contacts Insulation FormZb
Cable Entry Number1 tapped entry M16 x 1.5 cable gland (included) 4-8 mm
Minimum Force For Tripping10 N
Number Of Poles3
Complementary
- Height
- 65-65 mm
- Minimum Actuation Speed
- 0.01 m/min
- Head Material
- zamak
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 400 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
- Positive Opening Minimum Force
- 36 N
- Body Material
- zamak
- Width
- 31 mm
- [Ithe] Conventional Enclosed Thermal Current
- 6 A AC
Short-Circuit Protection6 A cartridge fuse gG
MarkingII2 D-Ex tb IIIC T85°C Db IP66/67
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60664 || 4 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13, inductive, 120 V, 2 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 4 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 3 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C
Mechanical Durability10000000 cycles
Contact Code DesignationB300, AC-15 (Ue = 240 V), Ie = 1.5 A EN 60947-5-1 || B300, AC-15 (Ue = 240 V), Ie = 1.5 A IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN 60947-5-1 || R300, DC-13 (Ue = 250 V), Ie = 0.1 A IEC 60947-5-1 appendix A
Depth30 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- INERIS 04ATEX0014X || IEC-Ex INE 17.0020X
- Standards
- EN/IEC 60079-31 || EN/IEC 60079-0
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Directives
- 2014/34/EU - ATEX directive
- Protective Treatment
- TC
Ambient Air Temperature For Operation-20-60 °C
Dust Zonezone 21 - 22
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Electrical Shock Protection Classclass I IEC 61140 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
