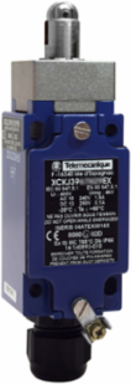

Telemecanique Sensors XCKJ3967H29EX Limit switch XCKJ, plunger, 2NC+1NO, M20 cable entry, ATEX/IECEx, By 30° cam
- MPN: XCKJ3967H29EX
- PPN: TES-XCKJ3967H29EX
CAD
$583.05
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch XCKJ, plunger, 2NC+1NO, M20 cable entry, ATEX/IECEx, By 30° cam
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Body material | Zamak |
|---|---|
| Contact code designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Marking | II2 D-Ex tb IIIC T85°C Db IP66/67 |
| Head material | Zamak |
|---|---|
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
Environment
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Electrical shock protection class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Dust zone | Zone 21 - 22 |
| Standards | IEC 60079-0 IEC 60079-31 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
|---|---|
| Protective treatment | TC |
| Product certifications | IEC-Ex INE 17.0020X INERIS 04ATEX0014X |
| Directives | 2014/34/EU - ATEX directive |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch |
| Sensor design | Form C conforming to CENELEC EN 50041 |
| Head type | Plunger head |
| Fixing mode | By the body |
| Type of operator | Spring return roller plunger steel reinforced |
| Type of approach | Lateral approach, 2 directions |
| Contacts type and composition | 2 NC + 1 NO |
| Contact operation | Snap action |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Series name | Standard format |
|---|---|
| Device short name | XCKJ |
| Body type | Fixed |
| Material | Metal |
| Movement of operating head | Linear |
| Switch actuation | By 30° cam |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm² |
| Contacts insulation form | Zb |
| Positive opening | With |
