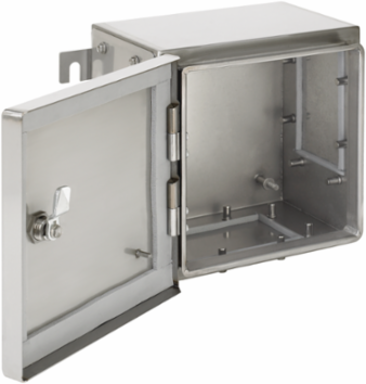

nVent Hoffman ATEX303016SS61 ZonEx ATEX- and IECEx-Certified Type 4X 1 GP, 306x306x160mm, Brushed, SS 316
- MPN: ATEX303016SS61
- UPC: 783510168285
- PPN: HOF-ATEX303016SS61
- UNSPSC: 39121331
CAD
$2240.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Zonex Enclosures certified to meet ATEX and IECEx standards for Zone 1 and Zone 2. This ZonEx ATEX- and IECEx-Certified Type 4X 1 GP, ATEX303016SS61 item measures 306x306x160mm with a material of SS 316, Brushed.
Features
- Type 316 stainless steel quarter-turn door latching
- 3-mm double-bit insert for security
- Slot and through-hole side-mount hanging brackets
- Lift-off door hinges
- Removable gland plates; one or three gland plates standard
- Internal/external brass earth/ground provision
- Type 316 stainless steel external fasteners
- Gray silicone high-temperature gasket on doors and gland plates; operating temperature range -55 C to +180 C
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 306
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #3
- Number of Gland Plate Openings
- 1
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Sub Brand
- ZONEX
- Size
- 306x306x160mm
Height (H)306
Depth (D)160
Product FamilyZonex
Thickness (T)1.4
IP RatingIP66
Weight15.1
MaterialStainless Steel
