Variable Speed Drive, 30 kW, 400-480V, IP55, Wall Mount, 50 kg
Schneider Electric

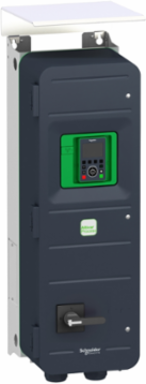

Schneider Electric ATV650D30N4EU Variable Speed Drive, 30 kW, 400-480V, IP55, Wall Mount, 50 kg

  • MPN: ATV650D30N4EU
  • PPN: SCH-ATV650D30N4EU
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Variable Speed Drive, 30 kW, 400-480V, IP55, Wall Mount, 50 kg

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China, Indonesia
    Depth401 mm

    Communications & Management Attributes

    Communication Port Protocol
    Ethernet, Modbus TCP

    Complementary Attributes

    Maximum Horse Power Rating
    30 hp heavy duty, 40 hp normal duty
    Maximum Thdi
    <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12
    Brake Chopper Integrated
    false
    Maximum Input Current Per Phase
    53.3 A
    Maximum Output Voltage
    480.0 V
    Maximum Switching Currentrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V ACrelay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
    Maximum Transient Current69.5 A 60 s normal duty), 67.7 A 60 s heavy duty)
    Maximum Associated Fuse Rating100.0 A
    Maximum Output Frequency500 kHz
    Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC

    Important Information Attributes

    Product Contributes To Saved And Avoided Emissions
    YES_SSI2, Yes
    Persona Type Names
    End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Asynchronous Motor Control Profile
    constant torque standard, optimized torque mode, variable torque standard
    Electrical Connection
    motor screw terminal 25...50 mm², line side screw terminal 25...50 mm², control removable screw terminals 0.5...1.5 mm²
    Emc Filter
    integrated 50 m IEC 61800-3 category C2, integrated 150 m IEC 61800-3 category C3
    Insulation Resistance
    > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
    Linearity Error
    AO1, AO2 +/- 0.2 % analog output, AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
    Motor Power Kw
    22 kW heavy duty), 30 kW normal duty)
    Noise Level
    69.7 dB 86/188/EEC, 69.7 dB
    Permissible Temporary Current Boost
    1.5 x In 60 s heavy duty), 1.1 x In 60 s normal duty)
    Protection Type
    safe torque off drive, motor phase break drive, thermal protection motorsafe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
    Supply
    internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection, external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection
    Synchronous Motor Control Profile
    synchronous reluctance motor, permanent magnet motor
    Vibration Resistance
    1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
    [Ue] Rated Operational Voltage
    380...480 V 30 kW 40 hp normal duty, 380...480 V 22 kW 25 hp heavy duty
    Environmental Class (During Operation)
    class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Environmental Class (During Transport)
    class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    82.95898377604793, 83 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    468 kg CO2 eq., 467.78978103011394
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    Yes
    Field Service Division
    IDIBS
    Weee Applicability
    Finished product
    Weee Product Category
    4
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Tier Id
    2
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    4 Quadrant Operation Possible
    false
    Base Load Current At High Overload
    46.3 A
    Braking To Standstill
    by DC injection
    Computer Port
    true
    Design Of Frequency Changer
    U converter
    Enclosure Mounting
    wall mounted
    Housing Material
    sheet steel
    Marking
    CE
    Maximum Input Current Per Phase
    53.3 A
    Mounting Mode
    wall mount
    Nominal Switching Frequency
    4 kHz
    Number Of Hw Interfaces Industrial Ethernet
    1
    Number Of Output Phases
    3
    Operating Position
    vertical +/- 10 degree
    Overvoltage Category
    III
    Power Loss Per Device Current Dependent
    843.0 W
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Specific Application
    process and utilities
    Quantity Per Set
    1
    Refresh Time
    relay output R1, R2, R3)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance
    10 %
    Returnability
    Yes
    Shock Resistance
    15 gn 11 ms IEC 60068-2-27
    Supply Frequency
    50...60 Hz - 5...5 %
    Supporting Protocol For Bacnet
    false
    Supporting Protocol For Devicenet
    false
    Supporting Protocol For Foundation Fieldbus
    false
    Supporting Protocol For Knx
    false
    Supporting Protocol For Modbus
    true
    Supporting Protocol For Profibus
    true
    Supporting Protocol For Profinet Io
    true
    Supporting Protocol For Safetybus P
    false
    Supporting Protocol For Suconet
    false
    Total Lifecycle Carbon Footprint
    9 647 kg CO2 eq.
    Type Of Cooling
    forced convection
    Updatability
    Upgradeable through digital modules
    With Safety Function Safe Programmable Logic
    false
    Pep Code
    ENVPEP1506001EN
    Pep Verification Date
    2026-05-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Electricity mix; Production mix; low voltage; 2022; China, CN
    Energy Model - Use [B6]
    Electricity mix; Production mix; low voltage; 2022; Europe, EU-27
    Recyclability Potential, In %
    89
    Width Nominal
    290 mm
    Maximum Acceleration Under Shock Impact (During Operation)
    150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)
    1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)
    1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Storage)
    class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Work
    false
    Supporting Protocol For Ethernet/Ip
    true
    Supporting Protocol For Tcp/Ip
    true
    With Safety Function Safe Direction (Sdi)
    false
    With Safety Function Safe Position (Sp)
    false
    With Safety Function Safe Stop 1 (Ss1)
    false
    With Safety Function Safely Limited Position (Slp)
    false
    With Sft Fct Safe Stop 2 (Ss2)
    false
    Package Weight(Lbs)
    66.0 kg
    Warranty (In Months)
    18
    Persona Type IdsEU, OM, OM8, SI
    Apparent Power29.8 kVA 480 V heavy duty), 38.2 kVA 480 V normal duty)
    Connector TypeRJ45 on the remote graphic terminal)Modbus serial, RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
    Electromagnetic Compatibilityradiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Frequency Resolutionanalog input 0.012/50 Hz, display unit 0.1 Hz
    Line Current45.9 A 480 V normal duty), 40.5 A 380 V heavy duty), 35.8 A 480 V heavy duty), 53.3 A 380 V normal duty)
    Local Signalling3 LEDs (dual colour) for embedded communication status, 4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage, 3 LEDs for local diagnostic
    Motor Slip Compensationadjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load
    Option Cardslot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IP, slot A communication module, CANopen daisy chain RJ45, slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminals, slot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink, slot A communication module, Profibus DP V1
    Product Destinationasynchronous motors, synchronous motors
    Sampling Duration5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output, 2 ms +/- 0.5 ms DI1...DI4) - discrete input
    Switching Frequency4...12 kHz with derating factor, 2...12 kHz adjustable
    Transmission Rate10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
    Certificate AgencyUL, DNV-GL, TÜV, ATEX INERIS, CSA, ATEX zone 2/22, Bureau Veritas
    [Us] Rated Supply Voltage380...480 V, 380...480 V - 15...10 %
    Environmental Class (During Storage)class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase [A4]10.153508910423685, 10 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]34 kg CO2 eq., 34.18958135717863
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]9 052 kg CO2 eq., 9051.666322703793
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeVariable speed drive - VSD Compacts
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1506001EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1923
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier2
    Function OptionAdvanced
    Market SegmentationIndustrial
    1 Phase Low Current Possiblefalse
    Application In Domestic And Commercial Area Permittedfalse
    Base Load Current At Low Overload61.5 A
    Capacity Of Dc Link2500.0 µF
    Data Format8 bits, configurable odd, even or no parity
    Device Short NameATV650
    Exchange Modehalf duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    Isolationbetween power and control terminals
    Maximum Associated Fuse Rating100.0 A
    Method Of Accessslave Modbus TCP
    Network Frequency50-60 Hz
    Number Of Addresses1-247 Modbus serial
    Number Of Hw Interfaces Serial Rs4851
    Operating Element Presenttrue
    Optical Interface Presentfalse
    Phase3 phase
    Power Loss Static Current Independent31.0 W
    Product Or Component Typevariable speed drive
    Prospective Line Isc50 kA
    Range Of ProductAltivar Process ATV600
    Regulation Loopadjustable PID regulator
    Relative Symmetric Network Frequency Tolerance5 %
    Safety FunctionSTO (safe torque off) SIL 3
    Software Versionv6.2.5-6
    Supporting Protocol For Asifalse
    Supporting Protocol For Cantrue
    Supporting Protocol For Devicenet Safetyfalse
    Supporting Protocol For Interbusfalse
    Supporting Protocol For Lonfalse
    Supporting Protocol For Other Bus Systemsfalse
    Supporting Protocol For Profinet Cbatrue
    Supporting Protocol For Profisafefalse
    Supporting Protocol For Sercosfalse
    Sustainable PackagingNo
    Transmission FrameRTU
    Type Of Polarizationno impedance
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permittedtrue
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 45 kW for heavy duty electric motors for fluid management and industrial applications in IP55/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 6% uptime in full phase, 15% uptime in medium high phase, 35% uptime in medium low phase and 44% uptime in low phase of the 5000h operating time and 1000h of standby according to the CEMEP guide: pump/fan/compressor.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime, In Kwh22394.13
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Height Nominal910 mm
    Emc Limit Value (Complied)true
    Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highwayfalse
    Supporting Protocol For Interbus-safetyfalse
    With Safety Function Safe Brake Management (Sbc/Sbt)false
    With Safety Function Safe Operating Stop (Sos)false
    With Safety Function Safe Speed Monitor (Ssm)false
    With Safety Function Safe Torque Off (Sto)true
    With Safety Function Safely Limited Speed (Sls)false
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-40 °C (without derating), -15-40 °C (without derating), -15-50 °C, -15-50 °C, 40-50 °C (with derating factor), -15-40 °C (without derating), -15-40 °C (without derating)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating1000...4800 m with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1506001EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1506001EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP55, IP55IEC 60529, IP55IEC 61800-5-1
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint9646.758177777558
    Environmental DisclosureENVPEP1506001EN
    Nema Degree Of ProtectionNEMA 12
    Packaging Without Single Use PlasticNo
    Relative Humidity5-95 % without condensation IEC 60068-2-3
    Pep Verification Date2026-05-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Process ATV600
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 10 bits, software-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA
    Discrete Output Type
    relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R3A, R3C 30 V DC 5000 mArelay outputs R1A, R1B, R1C 250 V AC 3000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA
    Relay Output Type
    configurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles, configurable relay logic R1 fault relay NO/NC 100000 cycles
    Discrete Output Number
    0
    Maximum Output Voltage
    480.0 V
    Nominal Output Power
    30.0 kW
    Speed Drive Output Frequency
    0.1-500 Hz
    Continuous Output Current59 A 4 kHz normal duty, 46.3 A 4 kHz heavy duty
    Output Voltage<= power supply voltage, <= power supply voltage
    Analogue Output Number2
    Maximum Output Frequency500 kHz
    Nominal Output Current61.5 A
    Relay Output Number3

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated 50 m IEC 61800-3 category C2, integrated 150 m IEC 61800-3 category C3

    Input Attributes

    Analogue Input Type
    AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
    Input Compatibility
    DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2, DI1...DI6 discrete input level 1 PLC IEC 61131-2
    Discrete Input Number
    8
    Number Of Input Phases
    3
    Discrete Input Logicpositive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, 16 preset speeds
    Analogue Input Number3
    Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

    Batteries & Runtime Attributes

    Removable Battery
    Yes
    Loading video…

    Similar Products

    Loading carousel layout...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
    ",{"children":null,"id":"ahrefs web analytics"}])",{"children":null,"id":"ahrefs web analytics"}])
