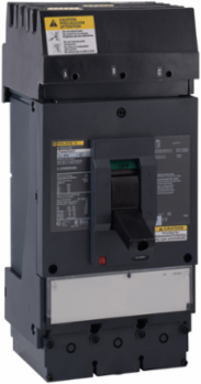

Square D LLA36000S40X Automatic Switch 400A 3-Pole 600V AC I-Line Magnetic

MPN: LLA36000S40X
UPC: 785901133391
PPN: SCH-LLA36000S40X
UNSPSC: 39121601

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for excellence in power distribution, this automatic switch from Schneider Electric is designed to provide reliable circuit protection for demanding applications. With a robust specification of 400A, this 3-pole device operates efficiently at 600V AC, making it suitable for a variety of commercial and industrial settings. The I-Line magnetic design enhances performance by ensuring trip responsiveness in overload situations, thus safeguarding your electrical systems and prolonging equipment life. This circuit breaker represents a significant investment in safety and efficiency, key for any operator managing high loads.

Features

To open and close a circuit under normal operating conditions
Can make and break its rated current
Factory set nonadjustable trip point to protect the molded case switch
A wide range of accessories, auxiliaries, and lug connections available
UL 489 Listed, CSA, ANCE, IEC certified

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Depth	6.61 in

Weight	6804 g

Complementary Attributes

Line Rated Current	400 A
Short Circuit Withstand	125 kA 240 V UL 489100 kA 480 V UL 48950 kA 600 V UL 489

Ue Rated Operational Voltage	600 V AC

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CE, NMX, CSA, UL Listed, CCC, IEC
Carbon Footprint Of The End Of Life Phase C1 To C4	10 kg CO2 eq., 10.302971150240523
Carbon Footprint Of The Manufacturing Phase A1 To A3	44 kg CO2 eq., 43.82880551360121
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2206029_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2543
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Electrical Connection	lugs, loadI-Line connection, line
Magnetic Tripping Current	4800-4800 A
Number Of Poles	3P
Product Or Component Type	automatic switch
Returnability	Yes
Sustainable Packaging	No
Tightening Torque	50-50 N.m 95-240 mm² (3/0 AWG...500 kcmil)
Trip Unit Technology	magnetic
Data Source	extrapolated product
Width Nominal	5.51 in
Customs Code	8536509040
Functional Unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	58

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	1.966271580566898, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.8967904693791804, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	738 kg CO2 eq., 738.058452197221
Local Publishable Date	2026-09-05
Device Type	LV equipment - LV switch - disconnector
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	2 x 3/0 AWG...500 kcmil ( aluminium/copper )
Energy Efficiency Optimized	False
Mounting Mode	I-Line
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	PowerPact L
Software Version	v6.2.5-6
Terminal Identifier	AL600LF52K3
Total Lifecycle Carbon Footprint	796 kg CO2 eq.
Database Version	2024-01
Height Nominal	13.38 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	796.0532909110087
Environmental Disclosure	ENVPEP2206029EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2027-06-23
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI2206029_V2
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2206029EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
