Square D

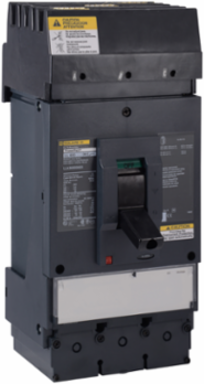

Square D LLA36000S60X PowerPacT L Automatic Switch, 600A, 3 Pole, 600VAC, Magnetic, I-Line

  • MPN: LLA36000S60X
  • UPC: 785901146254
  • PPN: SCH-LLA36000S60X
  • UNSPSC: 39121601
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Engineered for robust power distribution, the PowerPacT L Automatic Switch by Schneider Electric is designed to deliver exceptional performance in demanding environments. With a current rating of 600A, this three-pole circuit breaker is suitable for use in systems up to 600VAC, ensuring reliability for various applications. Its magnetic trip mechanism allows for rapid fault detection, providing a critical layer of protection for your electrical infrastructure. This switch stands out for its durability and efficiency, making it a vital component for any modern power distribution system.

Features

  • To open and close a circuit under normal operating conditions
  • Can make and break its rated current
  • Factory set nonadjustable trip point to protect the molded case switch
  • A wide range of accessories, auxiliaries, and lug connections available
  • UL 489 Listed, CSA, ANCE, IEC certified

Documentation & Downloads

Specifications

Key Specifications

Country of OriginUnited States
Depth4.75 in
Weight7711 g

Complementary Attributes

Line Rated Current600 A
Short Circuit Withstand125 kA 240 V UL 489100 kA 480 V UL 48950 kA 600 V UL 489
Ue Rated Operational Voltage600 V AC

Important Information Attributes

Persona Type IdsLC, OM, OM8, PB
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Certificate AgencyCSA, NMX, CCC, UL Listed, IEC, CE
Carbon Footprint Of The End Of Life Phase C1 To C412 kg CO2 eq., 11.67639778652332
Carbon Footprint Of The Manufacturing Phase A1 To A350 kg CO2 eq., 49.671357924070975
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2206029_V2
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge2 x 3/0 AWG...500 kcmil ( aluminium/copper )
Magnetic Tripping Current6600-6600 A
Number Of Poles3P
Product Or Component Typeautomatic switch
ReturnabilityYes
Sustainable PackagingNo
Tightening Torque50-50 N.m 95-240 mm² (3/0 AWG...500 kcmil)
Trip Unit Technologymagnetic
Data Sourceextrapolated product
Width Nominal6 in
Customs Code8536509040
Functional Unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh1552.1625
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A42.228383327123949, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A52.1496401101385745, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6758 kg CO2 eq., 757.8801652135367
Local Publishable Date2026-09-05
Device TypeLV equipment - LV switch - disconnector
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1905
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Electrical Connectionlugs, loadI-Line connection, line
Mounting ModeI-Line
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductPowerPact L
Software Versionv6.2.5-6
Terminal IdentifierAL600LF52K3
Total Lifecycle Carbon Footprint824 kg CO2 eq.
Database Version2024-01
Height Nominal13 in
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y20
Recyclability Potential In %58

Environment Attributes Main

China Rohs RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level0 %
Carbon Footprint823.6059443613935
Environmental DisclosureENVPEP2206029EN
Packaging Made With Recycled CardboardYes
Pep CodeENVPEP2206029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2206029_V2
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep Verification Date2027-06-24
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Typeautomatic switch
Range Of ProductPowerPact L

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months

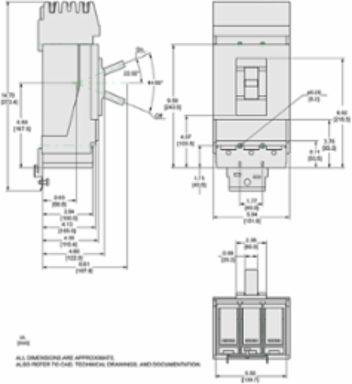

PowerPacT L Automatic Switch, 600A, 3 Pole, 600VAC, Magnetic, I-Line
PowerPacT L Automatic Switch, 600A, 3 Pole, 600VAC, Magnetic, I-Line
