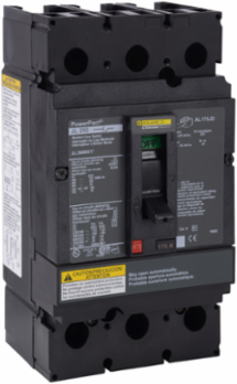

Square D JLL36000S17 PowerPact J 175A Automatic Switch, 3 Pole, 600VAC, Magnetic Trip
- MPN: JLL36000S17
- UPC: 785901945062
- PPN: SCH-JLL36000S17
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT J-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT J, 175A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT J automatic switches comply to UL, CSA, ANCE, and IEC standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth5 in
Complementary Attributes
- Line Rated Current
- 175 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Short-circuit Withstand
- 125 kA 240 V UL 489, 100 kA 480 V UL 489, 50 kA 600 V UL 489
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4 kg CO2 eq., 3.8687571226078603
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 13 kg CO2 eq., 12.77614809696986
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2206031_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2539
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Circuit Breaker Type
- J-frame
- Magnetic Tripping Current
- 3125-3125 A
- Number Of Poles
- 3P
- Product Or Component Type
- automatic switch
- Returnability
- Yes
- Sustainable Packaging
- No
- Tightening Torque
- 26-26 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Trip Unit Technology
- magnetic
- Pep Code
- ENVPEP2206031EN
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- [A5]
- Energy Model - End Of Life [C1-c4]
- [C1 - C4]
- Height Nominal
- 7.52 in
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 2.268 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL Listed, IEC, CSA
Carbon Footprint Of The Distribution Phase [A4]0.6554238601889661, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.009651929011281793, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]395 kg CO2 eq., 395.0061811328301
Local Publishable Date2025-11-13
Stocking FlagY
Device TypeLV equipment - LV switch - disconnector
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gaugex AWG 4...AWG 4/0 ( aluminium/copper )
Energy Efficiency OptimizedFalse
Mounting Modeunit mount
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPowerPact J
Software Versionv6.2.4
Terminal IdentifierAL175JD
Total Lifecycle Carbon Footprint412 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %51
Width Nominal2.74 in
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 412.31616214160806
- Environmental Disclosure
- ENVPEP2206031EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2206031_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206031EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- automatic switch
Range Of ProductPowerPact J
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
