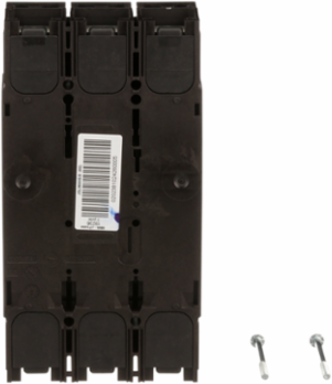

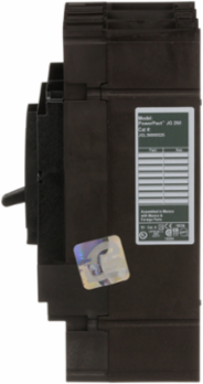

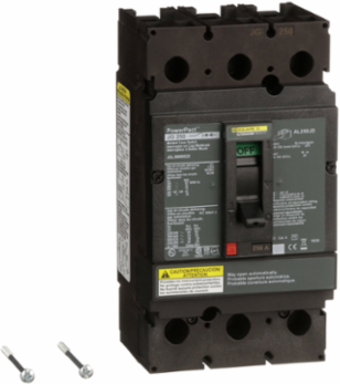

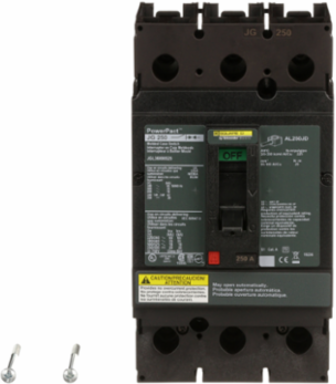

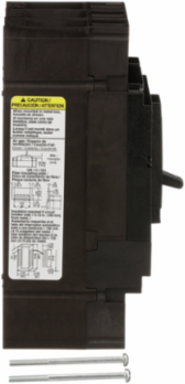

Square D JGL36000S25 PowerPact J Automatic Switch, 250A, 3-Pole, 600VAC, Magnetic Trip
- MPN: JGL36000S25
- UPC: 785901598862
- PPN: SCH-JGL36000S25
CAD
$4220.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT J-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT J automatic switches comply to UL, CSA, ANCE, and IEC standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth4.5 in
Complementary Attributes
- Line Rated Current
- 250 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- [Ue] Rated Operational Voltage
- 600 V AC, 250 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6357727038870042, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.00936254136896823, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 533 kg CO2 eq., 533.4027315387032
- Local Publishable Date
- 2025-12-16
- Stocking Flag
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- x AWG 3/0...350 kcmil ( aluminium/copper )
- Magnetic Tripping Current
- 3125-3125 A
- Number Of Poles
- 3P
- Product Or Component Type
- automatic switch
- Returnability
- Yes
- Sustainable Packaging
- No
- Tightening Torque
- 26-26 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Trip Unit Technology
- magnetic
- Pep Code
- ENVPEP2206031EN
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 51
- Width Nominal
- 4.12 in
- Package Weight(Lbs)
- 2.268 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCSA, UL Listed, CE, IEC, NMX, CCC
Short-circuit Withstand65 kA 240 V UL 489, 35 kA 480 V UL 489, 18 kA 600 V UL 489
Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 3.7527626409776427
Carbon Footprint Of The Manufacturing Phase [A1 To A3]12 kg CO2 eq., 12.393088982951364
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2206031_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2539
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Mounting Modeunit mount
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductPowerPact J
Software Versionv6.2.4
Terminal IdentifierAL250JD
Total Lifecycle Carbon Footprint550 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh1108.6875
Energy Model - Installation [A5][A5]
Energy Model - End Of Life [C1-c4][C1 - C4]
Height Nominal7.52 in
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 550.1937184078881
- Environmental Disclosure
- ENVPEP2206031EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2206031_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206031EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- automatic switch
Range Of ProductPowerPact J
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
