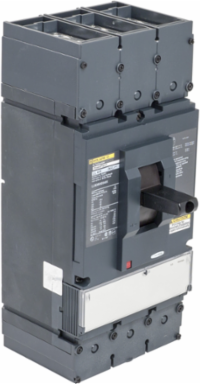

Square D LLM36000S40X Automatic switch, PowerPacT L, 400A, 3 pole, 600VAC, 50kA, lugs, magnetic
- MPN: LLM36000S40X
- UPC: 785901093442
- PPN: SCH-LLM36000S40X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT L-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on the line side and terminal nuts on the load side. This PowerPacT L, 400A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT L automatic switches comply to UL, CSA, ANCE, and IEC standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth6.61 in
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- IEC, NMX, UL Listed, CCC, CE, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 11 kg CO2 eq., 10.86627292388683
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 46 kg CO2 eq., 46.225089412933904
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2206029_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2543
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Electrical Connection
- lugs, lineterminal nut, load
- Magnetic Tripping Current
- 4800-4800 A
- Number Of Poles
- 3P
- Product Or Component Type
- automatic switch
- Returnability
- Yes
- Sustainable Packaging
- No
- Tightening Torque
- 50-50 N.m 70-240 mm² (2/0 AWG...500 kcmil)
- Trip Unit Technology
- magnetic
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 58
- Width Nominal
- 5.51 in
- Short-circuit Withstand
- 125 kA 240 V UL 489100 kA 480 V UL 48950 kA 600 V UL 489
- Package Weight(Lbs)
- 7.176 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]2.073774965042337, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2.0004950629431213, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]739 kg CO2 eq., 738.6066153573505
Local Publishable Date2026-01-15
Stocking FlagN
Device TypeLV equipment - LV switch - disconnector
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge2 x 2/0 AWG...500 kcmil ( aluminium/copper )
Energy Efficiency OptimizedFalse
Mounting Modeunit mount
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductPowerPact L
Software Versionv6.2.5-6
Terminal IdentifierAL600LS52K3
Total Lifecycle Carbon Footprint800 kg CO2 eq.
Pep CodeENVPEP2206029EN
Pep Verification Date2025-08-20
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal13.38 in
[Ue] Rated Operational Voltage600 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 799.7722477221567
- Environmental Disclosure
- ENVPEP2206029EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-20
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2206029_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- automatic switch
Range Of ProductPowerPact L
