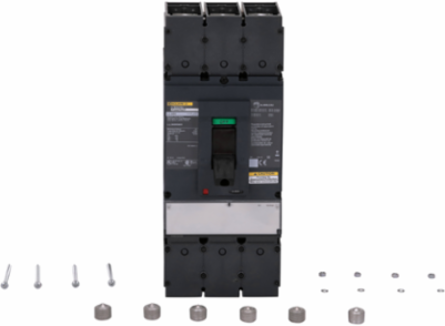

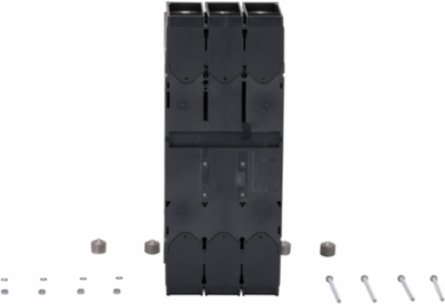

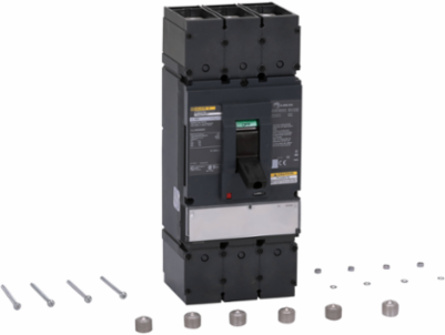

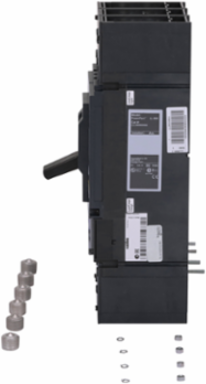

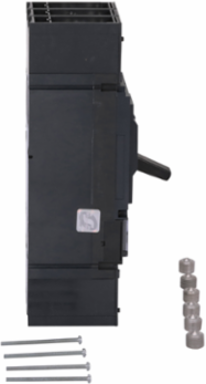

Square D LLL36000S60X Automatic switch, PowerPact L, 600A, 3 pole, 600VAC, 50kA, lugs, magnetic
Square D LLL36000S60X Automatic switch, PowerPact L, 600A, 3 pole, 600VAC, 50kA, lugs, magnetic
- MPN: LLL36000S60X
- UPC: 785901123743
- PPN: SCH-LLL36000S60X
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

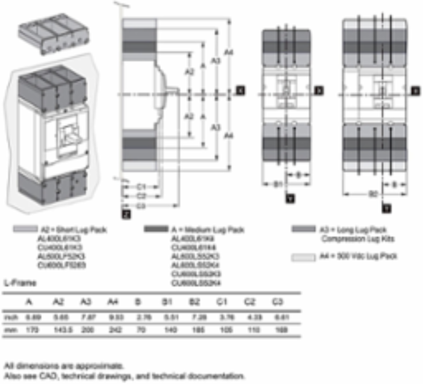

PowerPact L-Frame Automatic Molded Case Switch, LLL36000S60X, are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPact J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. This breaker is certified to UL, IEC, CE, CSA Standards. Dimensions are 340 mm (H) x 105 mm (W) x 168 mm (D). The PowerPact Advantage. Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities. Flexible, Full range of thermal-magnetic and electronic trip molded case circuit breakers from 15 A to 3000 A, delivering the ratings, configurations, and operators for your unique applications. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories.
Specifications
Complementary
- Terminal Identifier
- AL600LS52K3
- Tightening Torque
- 50-50 N.m 70-240 mm² AWG 2/0...500 kcmil)
- Magnetic Tripping Current
- 6600-6600 A
- Mounting Mode
- unit mount
- Poles Description
- 3P
- Width
- 5.51 in
- [Ue] Rated Operational Voltage
- 600 V AC
Height13.38 in
Breaking Capacity CodeL
Electrical Connectionlugs, line || lugs, load
Short-Circuit Withstand125 kA 240 V UL 489 || 100 kA 480 V UL 489 || 50 kA 600 V UL 489
[In] Rated Current600 A
Depth6.61 in
Awg Gaugex AWG 2/0...500 kcmil ( aluminum/copper )
Specifications
- Range Of Product
- PowerPact L
- Product Or Component Type
- automatic switch
Circuit Breaker TypeL-Frame
Trip Unit Technologymagnetic
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206029EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206029EN
Environment
- Product Certifications
- UL listed || IEC || CSA
