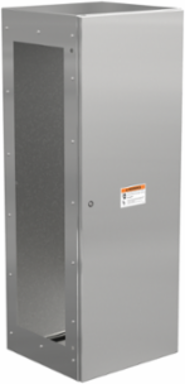

nVent Hoffman AXD542024SSC Sequestr High-Amp External Disconnect 4X, 54.00x20.00x24.13, Brushed, SS304
- MPN: AXD542024SSC
- UPC: 783510382759
- PPN: HOF-AXD542024SSC
- UNSPSC: 39121902
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Sequestr High-Amp isolates disconnect increasing system safety during maintenance applications. This Sequestr High-Amp External Disconnect 4X, AXD542024SSC item measures 54.00x20.00x24.13 inch with material of SS304 finish Brushed.
Features
- Seams continuously welded and ground smooth
- Interlocks with doors of main enclosure when the disconnect handle is powered ON to prevent opening when energized
- Disconnect handle mounts on main enclosure
- Designed to house cable-operated disconnect switches or
- Maintains UL Type rating of main enclosure
- Quarter-turn, slotted 3-point latch installed; padlocking handle shipped loose to provide additional level of security
- Conductive back panel included
- Hinged on right side
- Removable door with hidden stainless steel hinges for clean, aesthetic appearance
- Bonding provision on door
- Mounting and interlocking hardware included
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 508
- Protection Rating
- NEMA Type 4
- Finish
- Brushed #3
- Weight
- 150
- Size
- 54.00 x 20.00 x 24.13 inch
- NEMA Rating
- 3R, 4, 4X, 12
Height (H)1,372
Depth (D)613
Product FamilySequestr
Thickness (T)2
Sub BrandSequestr
MaterialStainless Steel 304
NEMA ColorUnpainted
