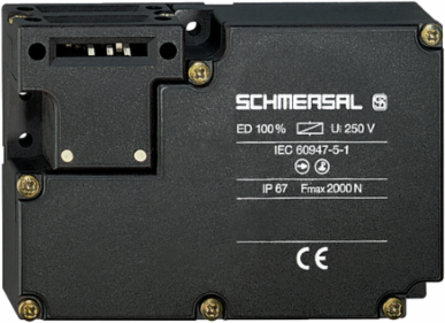

Schmersal 101166283 AZM 161 Solenoid Interlock, 130 mm x 90 mm x 30 mm, IP67, 4 Contacts

MPN: 101166283
PPN: SCM-101166283

$672.65

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

AZM 161 Solenoid Interlock, 130 mm x 90 mm x 30 mm, IP67, 4 Contacts

Features

Large wiring compartment
Manual release
cable entries 4 M 16 x 1.5
Thermoplastic enclosure
Double-insulated
Interlock with protection against incorrect locking.
130 mm x 90 mm x 30 mm
6 Contacts
Long life

Documentation & Downloads

Specifications

Electrical data

Thermal test current	6 A
Required rated short-circuit current	1,000 A

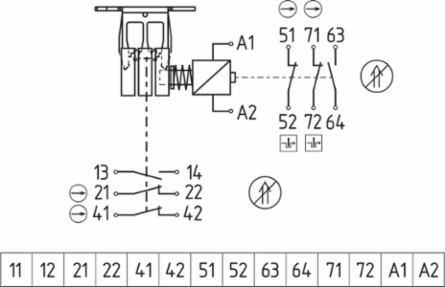

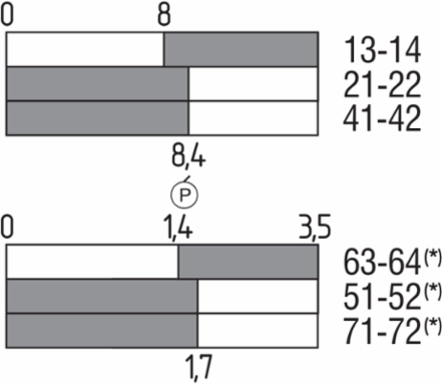

Switching element	NO contact, NC contact
Switching frequency	1,000 /h

Rated control voltage	24 VAC/DC
Electrical power consumption, maximum	10 W
Switching principle	slow action, positive break NC contact
Material of the contacts, electrical	Silver

Note

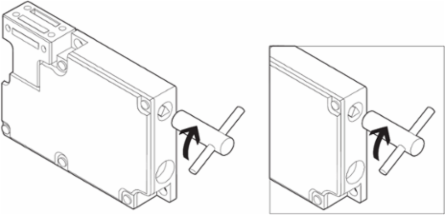

Note (Manual release)	For maintenance, installation, etc. \| For manual release using M5 triangular key, available as accessory

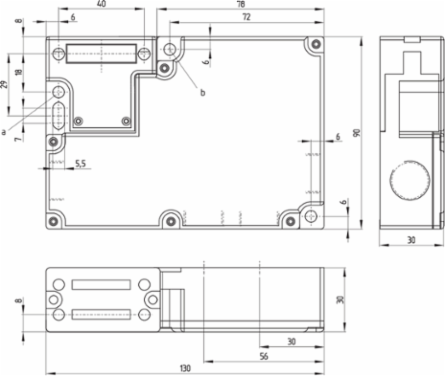

Mechanical data - Dimensions

Length of sensor	30 mm
Height of sensor	90 mm

Width of sensor	130 mm

Ambient conditions - Insulation values

Rated insulation voltage U	250 VAC

Rated impulse withstand voltage U	4 kV

Electrical data - Safety contacts

Voltage, Utilisation category AC-15	230 VAC
Voltage, Utilisation category DC-13	24 VDC

Current, Utilisation category AC-15	4 A
Current, Utilisation category DC-13	2.5 A

Scope of delivery

Scope of delivery	Actuator must be ordered separately.

Safety classification - Safety outputs

B	2,000,000 Operations
Note (B	at 10% I \| and ohmic load

B	1,000,000 Operations

Electrical data - Magnet control

Magnet switch-on time	100 %
Test pulse interval, minimum	50 ms

Test pulse duration, maximum	5 ms

General data - Features

Power to unlock	Yes
Number of actuating directions	3
Number of safety contacts	4

Manual release	Yes
Number of auxiliary contacts	2

General data

Standards	EN ISO 13849-1 \| EN ISO 14119 \| EN IEC 60947-5-1
Working principle	electromechanical
Gross weight	475 g

Coding level according to EN ISO 14119	Low
Enclosure material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Electrical data - Auxiliary contacts

Voltage, Utilisation category AC-15	230 VAC
Voltage, Utilisation category DC-13	24 VDC

Current, Utilisation category AC-15	4 A
Current, Utilisation category DC-13	2.5 A

Safety classification

Standards	EN ISO 13849-1
Safety Integrity Level (SIL), suitable for applications in	1

Performance Level, up to	c
Mission time	20 Year(s)

Other data

Note (applications)	sliding safety guard \| removable guard \| hinged safety guard

Ambient conditions

Degree of protection	IP67
Storage and transport temperature, minimum	-25 °C
Protection class	II

Ambient temperature	-30 ... +60 °C
Storage and transport temperature, maximum	+85 °C
Permissible installation altitude above sea level, maximum	2,000 m

Mechanical data - Connection technique

Termination	Cage clamps
Cable section, minimum	0.25 mm²
Note (Cable section)	All indications including the conductor ferrules.

Cable entry	4 x M16 x 1,5
Cable section, maximum	1.5 mm²
Allowed type of cable	solid single-wire \| solid multi-wire \| flexible

Mechanical data

Mechanical life, minimum	1,000,000 Operations
Holding force F	2,000 N
Latching force	30 N
Positive break force per NC contact, minimum	10 N
Actuating speed, maximum	2 m/s
Type of the fixing screws	3x M6
