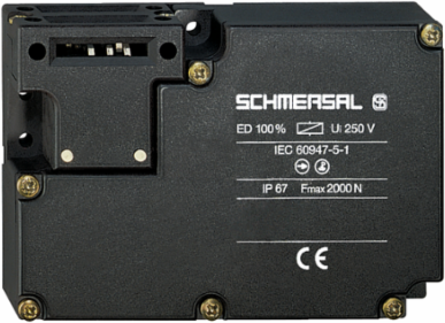

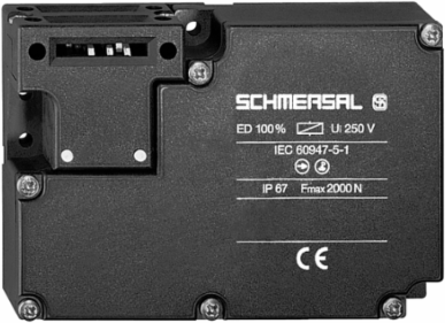

Schmersal 101166288 Electromechanical Solenoid Interlock, 130 mm x 90 mm x 30 mm, 230 VAC
- MPN: 101166288
- PPN: SCM-101166288
CAD
$646.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Electromechanical Solenoid Interlock, 130 mm x 90 mm x 30 mm, 230 VAC
Features
- Large wiring compartment
- Manual release
- cable entries 4 M 16 x 1.5
- Thermoplastic enclosure
- Double-insulated
- Interlock with protection against incorrect locking.
- 130 mm x 90 mm x 30 mm

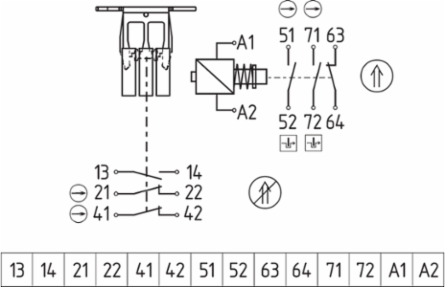

- 6 Contacts
- Long life
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 6 A
- Required rated short-circuit current
- 1,000 A
- Switching element
- NO contact, NC contact
- Switching frequency
- 1,000 /h
Rated control voltage230 VAC
Electrical power consumption, maximum10 W
Switching principleslow action, positive break NC contact
Material of the contacts, electricalSilver
Note

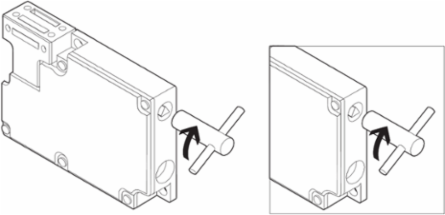

- Note (Manual release)
- For maintenance, installation, etc. | For manual release using M5 triangular key, available as accessory

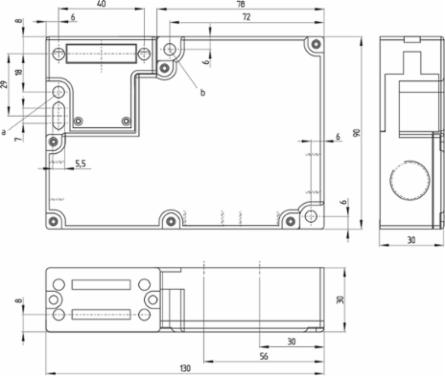

Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 90 mm
Width of sensor130 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
Rated impulse withstand voltage U4 kV
Electrical data - Safety contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-132.5 A
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
- Note (B
- at 10% I | and ohmic load
B1,000,000 Operations
Electrical data - Magnet control
- Magnet switch-on time
- 100 %
- Test pulse interval, minimum
- 50 ms
Test pulse duration, maximum5 ms
General data - Features
- Power to lock
- Yes
- Number of actuating directions
- 3
- Number of safety contacts
- 4
Manual releaseYes
Number of auxiliary contacts2
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
- Gross weight
- 415 g
Coding level according to EN ISO 14119Low
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Electrical data - Auxiliary contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-132.5 A
Safety classification
- Standards
- EN ISO 13849-1
- Safety Integrity Level (SIL), suitable for applications in
- 1
Performance Level, up toc
Mission time20 Year(s)
Other data
- Note (applications)
- sliding safety guard | removable guard | hinged safety guard
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Protection class
- II
Ambient temperature-30 ... +60 °C
Storage and transport temperature, maximum+85 °C
Permissible installation altitude above sea level, maximum2,000 m
Mechanical data - Connection technique
- Termination
- Cage clamps
- Cable section, minimum
- 0.25 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
Cable entry4 x M16 x 1,5
Cable section, maximum1.5 mm²
Allowed type of cablesolid single-wire | solid multi-wire | flexible
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Holding force F
- 2,000 N
- Latching force
- 30 N
- Positive break force per NC contact, minimum
- 10 N
- Actuating speed, maximum
- 2 m/s
- Type of the fixing screws
- 3x M6
Actuating play in direction of actuation5.5 mm
Holding force F2,600 N

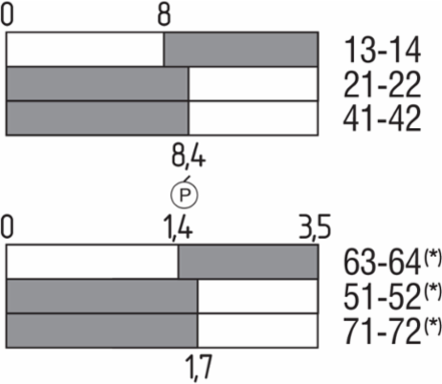

Positive break travel10 mm
Positive break force, minimum20 N
MountingScrews
Approvals - Standards
- Certificates
- cULus | CCC
