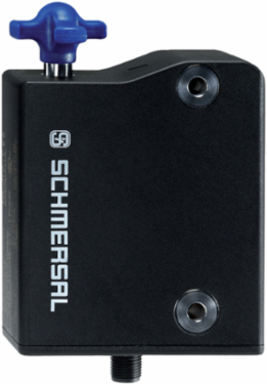

Schmersal 103005918 Solenoid Interlock with RFID Technology, IP69K, Height 102.6 mm
- MPN: 103005918
- PPN: SCM-103005918
CAD
$1344.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Solenoid Interlock with RFID Technology, IP69K, Height 102.6 mm
Features
- Thermoplastic enclosure
- Repeated individual coding with RFID technology
- Coding level "High" according to ISO 14119
- Suitable for hinged and sliding guards
- 3 different directions of actuation
- Guard locking monitored
- Power to unlock
- Solenoid supply 24 VDC (Aux)
- Hygienic design
- Protection class IP 69
- Solenoid interlock with integrated AS-i Safety Interface
- Universal repeatedly teachable or individual coding because of the RFID technology
- I-variants with coding level HIGH to ISO 14119
- 2 integrated snap-in stages
Documentation & Downloads
Specifications
Safety appraisal
| Standards | IEC 61508 |
|---|---|
| Control category to EN13849 | 4 |
| PFD value | 7.00 x 10⁻⁵ |
| Mission Time | 20 Year(s) |
| Performance level, up to | e |
|---|---|
| PFH-value | 4.00 x 10⁻¹⁰ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
Electrical data - AS-Interface specification
| AS-i Specification | Safety-Slave |
|---|---|
| AS-i Profile | S-7.B.F.E |
| AS-i Input, Channel 2 | Data bits DI 2 / DI 3 = dynamic code transmission |
| AS-i Outputs, DO 1 | No Function |
| AS-i Outputs, DO 3 | No Function |
| AS-i Parameter bits, P1 | Solenoid interlock locked |
| AS-i Parameter bits, P3 | Internal device error (FID) |
| AS-i Input module address | 0 |
| AS-i Version | V 3.0 |
|---|---|
| AS-i Input, Channel 1 | Data bits DI 0 / DI 1 = dynamic code transmission |
| AS-i Outputs, DO 0 | Solenoid control |
| AS-i Outputs, DO 2 | No Function |
| AS-i Parameter bits, P0 | Safety guard closed and can be locked |
| AS-i Parameter bits, P2 | Auxiliary voltage in |
| Note (AS-i Parameter bits) | Set the parameter outputs to "1111" (0xF) | FID: periphery error |
| Note (AS-i Input module address) | Preset to address 0, can be changed through AS-interface bus master or hand-held programming device |

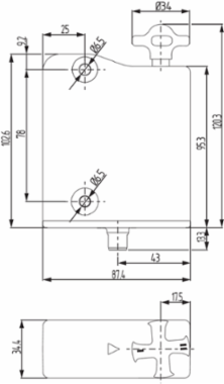

Mechanical data - Dimensions
| Length of sensor | 34.4 mm |
|---|---|
| Height of sensor | 102.6 mm |
| Width of sensor | 87.4 mm |
|---|
Pin assignment
| PIN 1 | AS-Interface + |
|---|---|
| PIN 3 | AS-Interface - |
| PIN 2 | Aux - (P) |
|---|---|
| PIN 4 | Aux + (P) |
Scope of delivery
| Included in delivery | Actuators must be ordered separately. |
|---|
Ambient conditions - Insulation value
| Rated insulation voltage U | 32 VDC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution to VDE 0100 | 3 |
General data - Features
| Power to unlock | Yes |
|---|---|
| Latching | Yes |
| Safety functions | Yes |
| Number of actuating directions | 3 |
| Guard locking monitored | Yes |
|---|---|
| Manual release | Yes |
| Integral System Diagnostics, status | Yes |
General data
| Standards | IEC 61508 | EN 60947-5-1 | EN ISO 14119 | EN 62026-2 | EN ISO 13849-1 |
|---|---|
| Coding level according to ISO 14119 | High |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Time to readiness, maximum | 5,000 ms |
| Duration of risk, maximum | 200 ms |
| general information | Individual coding, multiple teaching |
|---|---|
| Active principle | RFID |
| Gross weight | 595 g |
| Reaction time, maximum | 120 ms |
Electrical data - AS Interface
| AS-i Operating voltage, minimum | 18 VDC |
|---|---|
| Note (AS-i Operating voltage) | Protection against polarity reversal |
| AS-i Operating voltage AS-i maximum | 31.6 VDC |
|---|---|
| AS-i Current consumption, maximum | 100 mA |
Ambient conditions
| Degree of protection | IP66 to EN 60529 | IP67 to EN 60529 | IP69K to DIN 40050-9 |
|---|---|
| Ambient temperature, maximum | +60 °C |
| Storage and transport temperature, maximum | +90 °C |
| Restistance to shock | 30 g / 11 ms |
| Ambient temperature, minimum | +0 °C |
|---|---|
| Storage and transport temperature, minimum | -10 °C |
| Resistance to vibrations to EN 60068-2-6 | 10 … 150 Hz, amplitude 0.35 mm |
| Protection rating | II |
Mechanical data - Connection technique
| Terminal Connector | Connector plug M12, 4-pole, (A-coding) |
|---|
Mechanical data - Switching distances according IEC 60947-5-3
| Switch distance | 2 mm |
|---|---|
| Ensured switch distance "OFF" S | 20 mm |
| Ensured switch distance "ON" S | 1 mm |
|---|
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Clamping force | 1,150 N |
| Latching force, adjustable, position 2 | 50 N |
| Note (Mechanical lifetime) | When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s) |
|---|---|
| Latching force, adjustable, position 1 | 25 N |
Accessory
| Recommendation (actuator) | AZ/AZM300-B1 |
|---|
Electrical data - Auxiliary voltage
| Rated operating voltage | 24 VDC -15% / +10% (stabilised PELV) |
|---|
| Operating current | 300 mA |
|---|
Approval - Standards
| Certificates | TÜV | cULus | ASi-SaW | ECOLAB | EAC | FCC |
|---|
Status indication
| Note (LED switching conditions display) | (1) green/red LED (AS-i duo LED): Supply voltage/communication error/slave address = 0/periphery error detected/device error detected/manipulation protection active | (2) LED yellow: Device condition (Enabling status) | (3) LED red: Internal device error |
|---|
